SKU: RCJTY35-TV-VA-INA

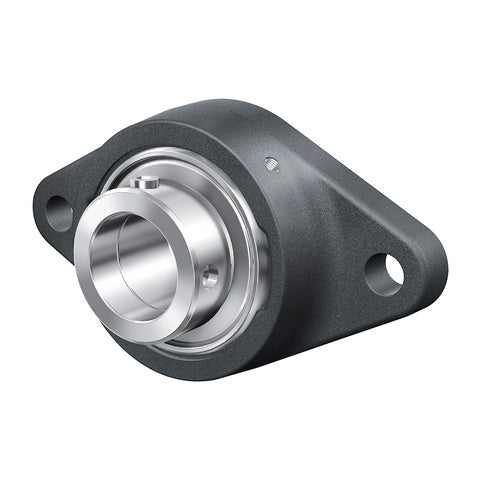

INA RCJTY35-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 35mm Bore

Name: INA RCJTY35-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 35mm Bore
Brand: INA
SKU: RCJTY35-TV-VA-INA
Price: 195.70 USD
Availability: InStock

$195.70 ex VAT

Sale Sold out

In stock

Price Break

4+ $131.09

9+ $123.72

19+ $122.25

29+ $120.78

39+ $119.30

49+ $117.83

59+ $110.47

69+ $108.99

79+ $107.52

89+ $106.05

99+ $103.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 35mm
Style:: RCJTY
Bolt Hole Centres:: 130mm

Technical

d	35mm
H	163mm
U	43.4mm
A	32.8mm
A1	16.1mm
A2	18mm
B	42.9mm
J	130mm
L	90mm
N	13mm
Q	1/4 - 28 UNF
V	90mm
Mass	0.68 kg
Basic dynamic load rating Cr	24600 N
Basic static load rating Cor	14600 N
Load carrying capacity of housing Cor G	14900 N
Designation of housing	GEH.CJT07-TV
Designation of bearing	GYE35-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK07-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK07-S-R-NBR
