SKU: RCJTY40-TV-VA-INA

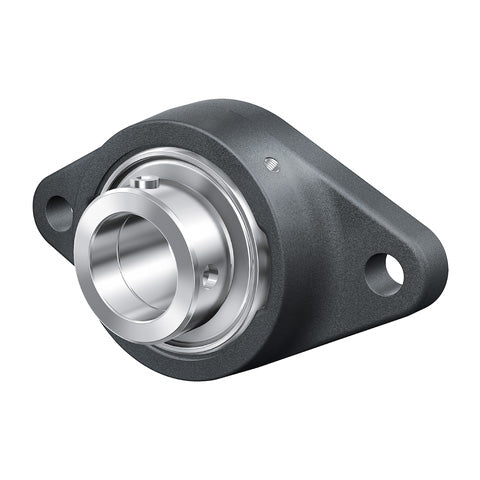

INA RCJTY40-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 40mm Bore

Name: INA RCJTY40-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 40mm Bore
Brand: INA
SKU: RCJTY40-TV-VA-INA
Price: 230.61 USD
Availability: InStock

$230.61 ex VAT

Sale Sold out

In stock

Price Break

4+ $154.47

9+ $145.79

19+ $144.05

29+ $142.32

39+ $140.58

49+ $138.85

59+ $130.17

69+ $128.43

79+ $126.70

89+ $124.96

99+ $121.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 40mm
Style:: RCJTY
Bolt Hole Centres:: 144mm

Technical

d	40mm
H	176mm
U	51.7mm
A	36.9mm
A1	20mm
A2	21.5mm
B	49.2mm
J	144mm
L	100mm
N	14mm
Q	1/4 - 28 UNF
V	100mm
Mass	0.92 kg
Basic dynamic load rating Cr	31500 N
Basic static load rating Cor	18900 N
Load carrying capacity of housing Cor G	14900 N
Designation of housing	GEH.CJT08-TV
Designation of bearing	GYE40-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK08-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK08-S-R-NBR
