SKU: RCJTY45-TV-VA-INA

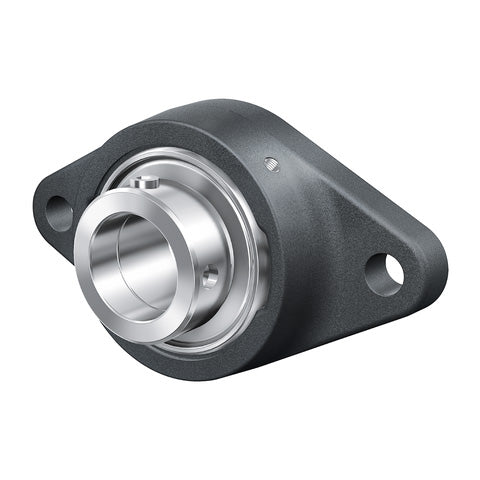

INA RCJTY45-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 45mm Bore

Name: INA RCJTY45-TV-VA Two Bolt Plastic Oval Housing with Grub Screw Insert Corrosion-Resistant Design 45mm Bore
Brand: INA
SKU: RCJTY45-TV-VA-INA
Price: 269.25 USD
Availability: InStock

$269.25 ex VAT

Sale Sold out

In stock

Price Break

4+ $180.35

9+ $170.22

19+ $168.19

29+ $166.16

39+ $164.14

49+ $162.11

59+ $151.98

69+ $149.95

79+ $147.93

89+ $145.90

99+ $141.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 45mm
Style:: RCJTY
Bolt Hole Centres:: 148.5mm

Technical

d	45mm
H	188.5mm
U	54.2mm
A	41mm
A1	21mm
A2	24mm
B	49.2mm
J	148.5mm
L	108mm
N	17mm
Q	1/4 - 28 UNF
V	108mm
Mass	1.05 kg
Basic dynamic load rating Cr	31500 N
Basic static load rating Cor	19400 N
Load carrying capacity of housing Cor G	15100 N
Designation of housing	GEH.CJT09-TV
Designation of bearing	GYE45-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK09-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK09-S-R-NBR

Reviews

View full details
