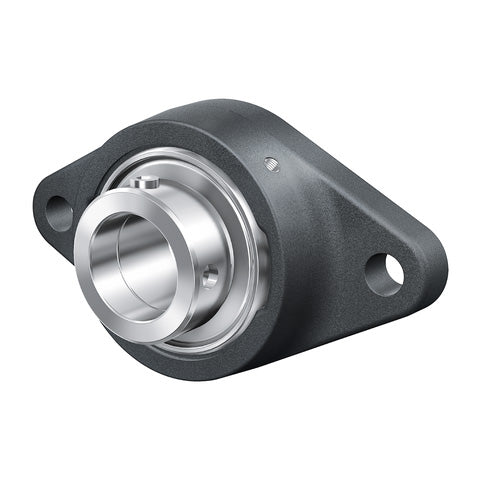

• INA RCJTZ20XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 20mm Bore
  • INA
1 2

SKU: RCJTZ20-XL-INA

INA RCJTZ20XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 20mm Bore

INA RCJTZ20XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 20mm Bore
$62.05 ex VAT
$62.05 ex VAT
Sale Sold out

In stock

Price Break
4+ $41.56
9+ $39.23
19+ $38.76
29+ $38.29
39+ $37.83
49+ $37.36
59+ $35.03
69+ $34.56
79+ $34.09
89+ $33.62
99+ $32.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RCJTZ
Bolt Hole Centres:
90mm
Technical
d 20mm
H 112.5mm
U 45.6mm
A 31.7mm
A1 10mm
A2 19mm
B1 43.7mm
d3 max 33mm
J 90mm
L 60.5mm
N 11.5mm
Q M6mm
T1 3.5mm
V 60.5mm
Z 55mm (Tolerance: h8)
Mass 0.53 kg
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing CJTZ04
Designation of bearing GE20-XL-KRR-B
