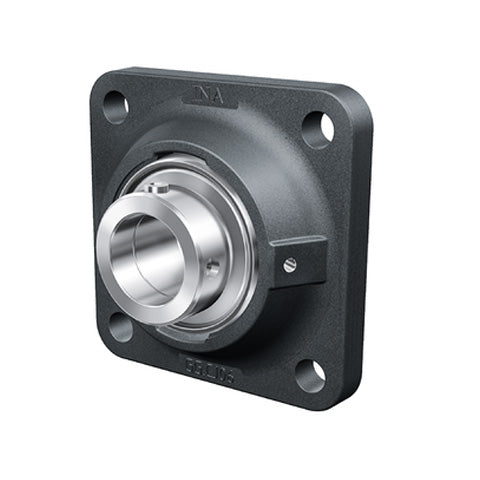

• INA RCJY12XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 12mm Bore
  • INA
1 2

SKU: RCJY12-XL-INA

INA RCJY12XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 12mm Bore

INA RCJY12XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 12mm Bore
$39.10 ex VAT
$39.10 ex VAT
Sale Sold out

In stock

Price Break
4+ $26.19
9+ $24.72
19+ $24.43
29+ $24.13
39+ $23.84
49+ $23.54
59+ $22.07
69+ $21.78
79+ $21.48
89+ $21.19
99+ $20.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
12mm
Style:
RCJY
Bolt Hole Centres:
54mm
Technical
d 12mm
L 76mm
U 32.9mm
A 27mm
A1 9.5mm
A2 17mm
B 27.4mm
J 54mm
N 11.5mm
Q M6
V 58mm
Mass 0.51 kg
Basic dynamic load rating Cr 10100 N
Basic static load rating Cor 4750 N
Designation of housing CJ03
Designation of bearing GYE12-XL-KRR-B
