SKU: RCJY20-TV-VA-INA

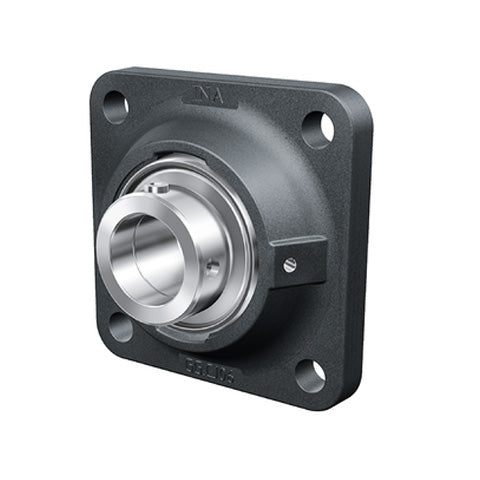

INA RCJY20-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore

Name: INA RCJY20-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 20mm Bore
Brand: INA
SKU: RCJY20-TV-VA-INA
Price: 119.68 USD
Availability: InStock

$119.68 ex VAT

Sale Sold out

In stock

Price Break

4+ $80.15

9+ $75.65

19+ $74.75

29+ $73.85

39+ $72.95

49+ $72.05

59+ $67.55

69+ $66.64

79+ $65.74

89+ $64.84

99+ $63.04

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: RCJY
Bolt Hole Centres:: 63.5mm

Technical

d	20mm
L	87mm
U	36.3mm
A	28mm
A1	13.4mm
A2	18mm
B	31mm
J	63.5mm
N	11mm
Q	1/4 - 28 UNF
V	63mm
Mass	0.32 kg
Basic dynamic load rating Cr	12300 N
Basic static load rating Cor	6300 N
Load carrying capacity of housing Cor G	10200 N
Designation of housing	GEH.CJ04-TV
Designation of bearing	GYE20-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK04-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK04-S-R-NBR
