SKU: RCJY25-TV-VA-INA

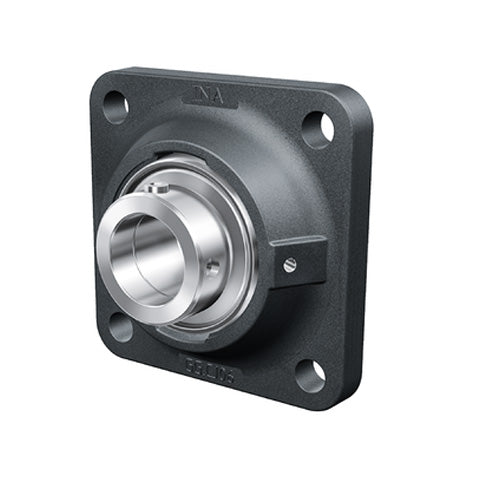

INA RCJY25-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 25mm Bore

Name: INA RCJY25-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 25mm Bore
Brand: INA
SKU: RCJY25-TV-VA-INA
Price: 136.48 USD
Availability: InStock

$136.48 ex VAT

Sale Sold out

In stock

Price Break

4+ $91.42

9+ $86.28

19+ $85.26

29+ $84.23

39+ $83.20

49+ $82.18

59+ $77.04

69+ $76.01

79+ $74.99

89+ $73.96

99+ $71.90

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 25mm
Style:: RCJY
Bolt Hole Centres:: 70mm

Technical

d	25mm
L	95mm
U	36.8mm
A	28mm
A1	14.3mm
A2	17mm
B	34.1mm
J	70mm
N	11mm
Q	1/4 - 28 UNF
V	70mm
Mass	0.4 kg
Basic dynamic load rating Cr	13400 N
Basic static load rating Cor	7500 N
Load carrying capacity of housing Cor G	12100 N
Designation of housing	GEH.CJ05-TV
Designation of bearing	GYE25-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK05-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK05-S-R-NBR
