SKU: RCJY50-TV-VA-INA

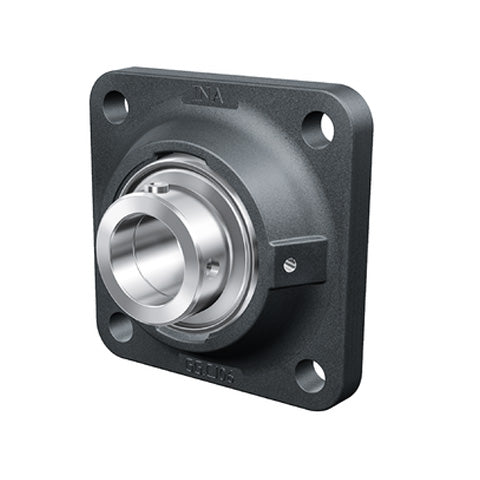

INA RCJY50-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 50mm Bore

Name: INA RCJY50-TV-VA Four Bolt Plastic Square Housing with Grub Screw Insert Corrosion-Resistant Design 50mm Bore
Brand: INA
SKU: RCJY50-TV-VA-INA
Price: 301.03 USD
Availability: InStock

$301.03 ex VAT

Sale Sold out

In stock

Price Break

4+ $201.64

9+ $190.31

19+ $188.04

29+ $185.78

39+ $183.51

49+ $181.25

59+ $169.92

69+ $167.65

79+ $165.39

89+ $163.12

99+ $158.59

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 50mm
Style:: RCJY
Bolt Hole Centres:: 111mm

Technical

d	50mm
L	143mm
U	57.6mm
A	43mm
A1	21mm
A2	25mm
B	51.6mm
J	111mm
N	17mm
Q	1/4 - 28 UNF
V	111mm
Mass	1.36 kg
Basic dynamic load rating Cr	33500 N
Basic static load rating Cor	22100 N
Load carrying capacity of housing Cor G	19600 N
Designation of housing	GEH.CJ10-TV
Designation of bearing	GYE50-KRR-B-FA107-VA
Bearing end cap, closed design (supplied with end cap)	KASK10-S-G
Bearing end cap, open design, with integral rotary shaft seal (available by agreement)	KASK10-S-R-NBR
