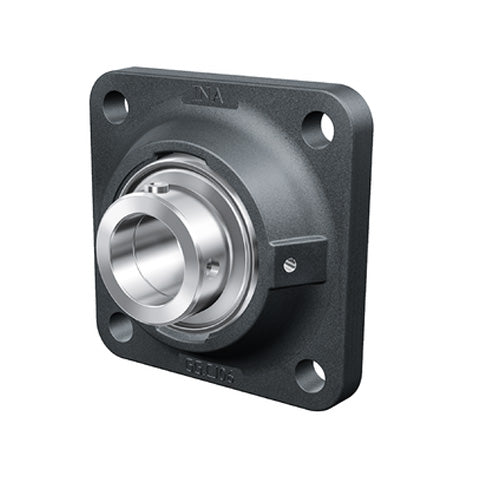

INA RCJY65214XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 65mm Bore
INA RCJY65214XL Four Bolt Cast Iron Square Housing with Grub Screw Insert 65mm Bore
Out of stock
Description
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: Re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 65mm
- Style:
- RCJY
- Bolt Hole Centres:
- 150mm
Technical
Technical
| d | 65mm |
|---|---|
| L | 188mm |
| U | 82.4mm |
| A | 52mm |
| A1 | 18mm |
| A2 | 38mm |
| B | 74.6mm |
| J | 150mm |
| N | 18mm |
| Q | M6 |
| V | 165mm |
| Mass | 5.65 kg |
| Basic dynamic load rating Cr | 66000 N |
| Basic static load rating Cor | 44000 N |
| Designation of housing | CJ14 |
| Designation of bearing | GYE65-214-XL-KRR-B |
