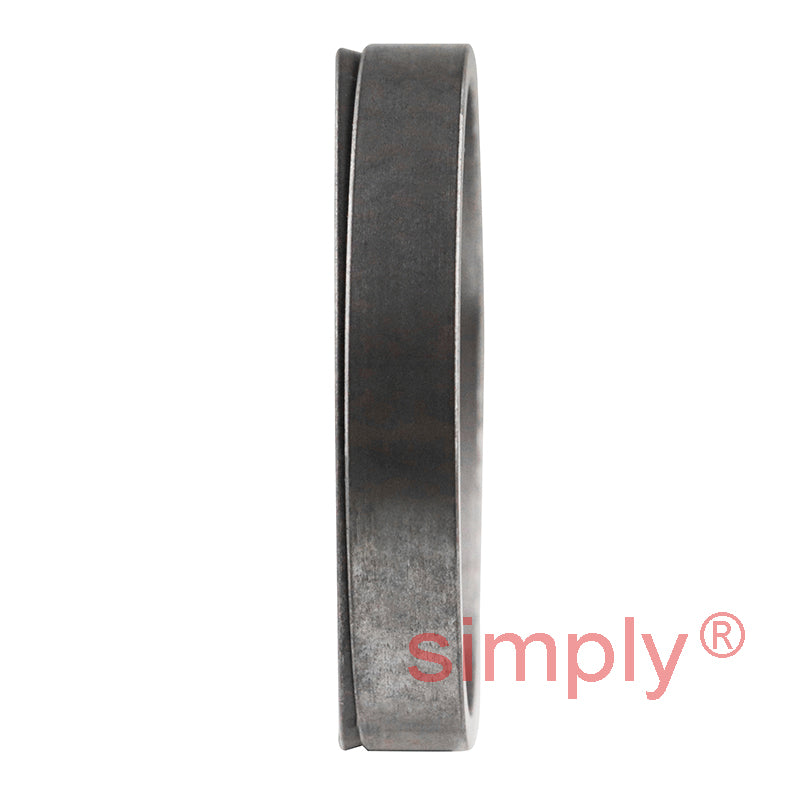

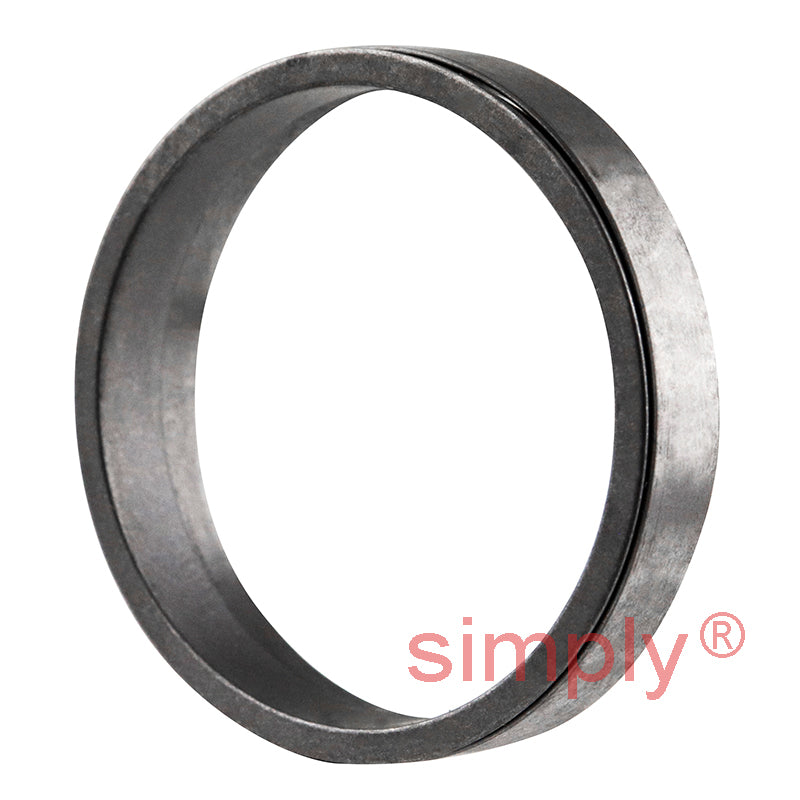

• RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
  • RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
  • RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
  • Cross & Morse
1 4

SKU: RCK15-25x65

RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter

RCK1525x65 Shaft Clamping Element for Hubs of 25mm Bore Diameter
$19.65 ex VAT
$19.65 ex VAT
Sale Sold out

In stock

Price Break
10+ $12.42
20+ $12.28
30+ $12.13
50+ $11.98
75+ $11.83
100+ $11.09
200+ $10.94
250+ $10.80
500+ $10.65
1000+ $10.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Cross & Morse - High Quality
Inside Diameter:
25mm
Outside Diameter:
65mm
Width:
39mm
Technical
d 25mm
D 65mm
L 39mm
L<sub>1</sub> 17mm
L<sub>2</sub> 22mm
L<sub>3</sub> 31mm
X 25mm
Torque Cap. M Nm 637
Axial Force F kN 51
Shaft Ps N/mm<sup>2</sup> 320
Hub Ph N/mm<sup>2</sup> 122
M8 M8
Clamping Screws Torque Nm 41
Kg 0.63
Min. Hub Dia. Assy. A 97
Min. Hub Dia. Assy. B 89
Min. Hub Dia. Assy. C 82
