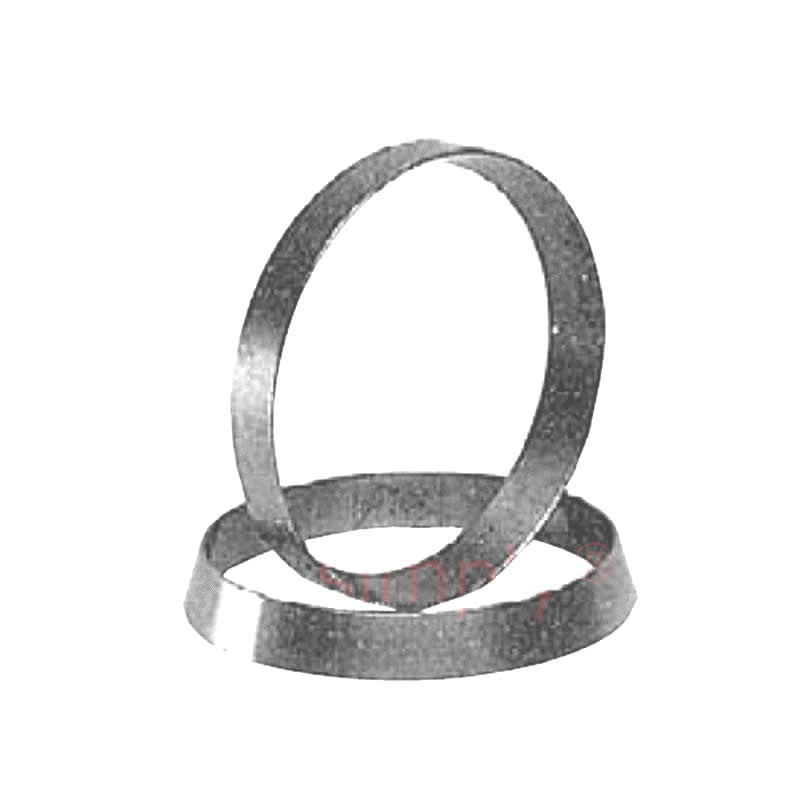

• RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
  • Cross & Morse
1 2

SKU: RCK50-40x45

RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter

RCK5040x45 Shaft Clamping Element for Hubs of 40mm Bore Diameter
$5.95 ex VAT
$5.95 ex VAT
Sale Sold out

In stock

Price Break
10+ $3.76
20+ $3.72
30+ $3.67
50+ $3.63
75+ $3.58
100+ $3.36
200+ $3.32
250+ $3.27
500+ $3.23
1000+ $3.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Cross & Morse - High Quality
Inside Diameter:
40mm
Outside Diameter:
45mm
Width:
8mm

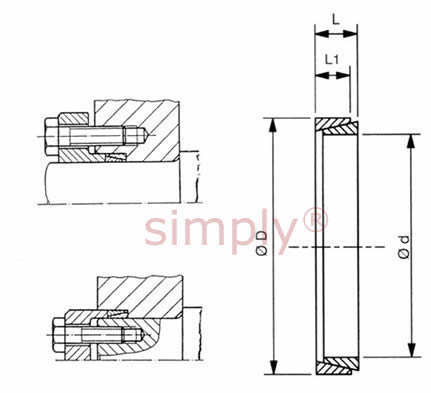

Technical
d 40mm
D 45mm
L 8mm
L<sub>1</sub> 6.6mm
Torque Cap. M Nm 231
Axial Force F kN 0.8
Shaft Ps N/mm<sup>2</sup> 115
Hub Ph N/mm<sup>2</sup> 105
Axial Force to Clamp kN 66
Kg 23
Min. Hub Dia. Assy. A 63.3
Min. Hub Dia. Assy. B 58.9
Min. Hub Dia. Assy. C 55
