SKU: RCRA20/46-FA106-INA

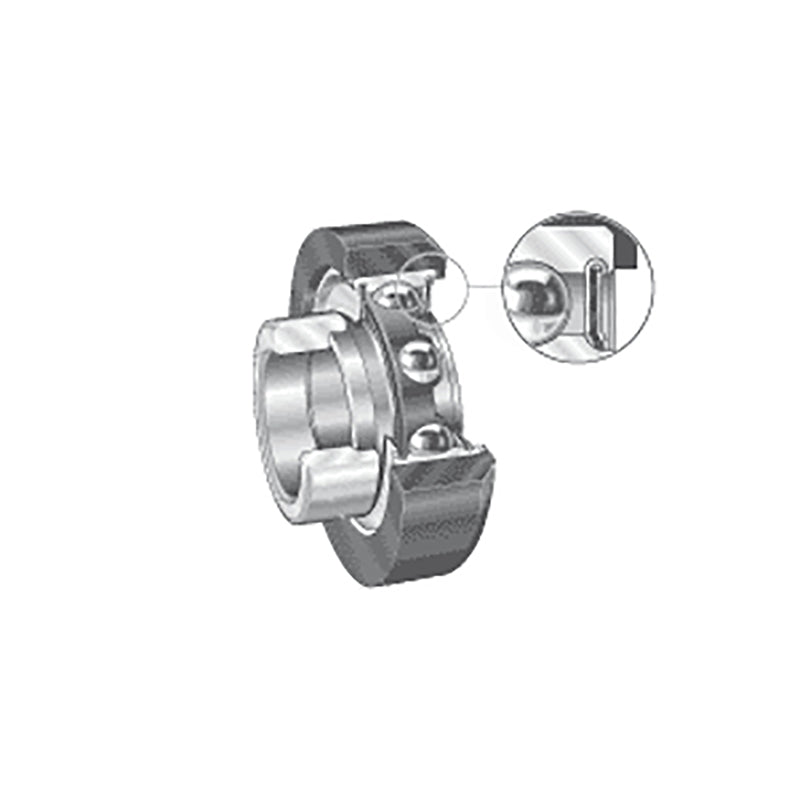

INA RCRA20/46XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x46x24.5mm

Name: INA RCRA20/46XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x46x24.5mm
Brand: INA
SKU: RCRA20/46-FA106-INA
Price: 31.82 USD
Availability: InStock

$31.82 ex VAT

Sale Sold out

In stock

Price Break

3+ $21.32

5+ $20.12

10+ $19.88

15+ $19.64

20+ $19.40

30+ $19.16

40+ $17.96

50+ $17.72

60+ $17.48

75+ $17.24

100+ $16.77

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Outside Diameter:: 46mm
Width:: 24.5mm

Technical

d	20mm
D	46mm
B1	24.5mm
C	18.3mm
C2	16mm
D2	35mm
d3 max	30mm
P	10mm
S1	18.6mm
Operating temperature	-20 deg C to +85 deg C
Rubber ring: hardness, Shore A	70 deg
Rubber ring: load carrying capacity Cg	900 N
Dynamic load Cr	9400 N
Static load C0r	5000 N
Designation of rubber interliner	RCR42/46
Designation of bearing	RALE20-NPP-FA106
Weight	0.14 kg
