• INA RCSMB15/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x65.1x28.6mm
  • INA
1 2

SKU: RCSMB15/65-FA106-INA

INA RCSMB15/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x65.1x28.6mm

INA RCSMB15/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 15x65.1x28.6mm
$37.97 ex VAT
$37.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $25.44
5+ $24.01
10+ $23.72
15+ $23.44
20+ $23.15
30+ $22.86
40+ $21.44
50+ $21.15
60+ $20.86
75+ $20.58
100+ $20.01

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

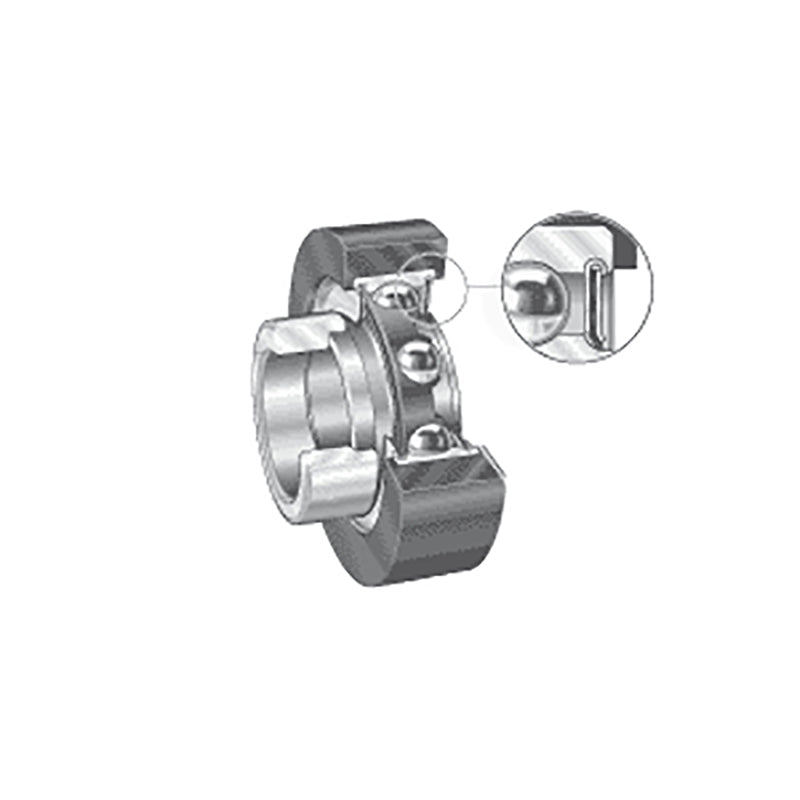

INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
15mm
Outside Diameter:
65.1mm
Width:
28.6mm
Technical
d 15mm
D 65.1mm
B1 28.6mm
C 25.4mm
D2 35mm
d3 max 28mm
P 12.7mm
S1 22.1mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 900 N
Dynamic load Cr 9800 N
Static load C0r 4750 N
Designation of bearing 331061
Weight 0.18 kg
