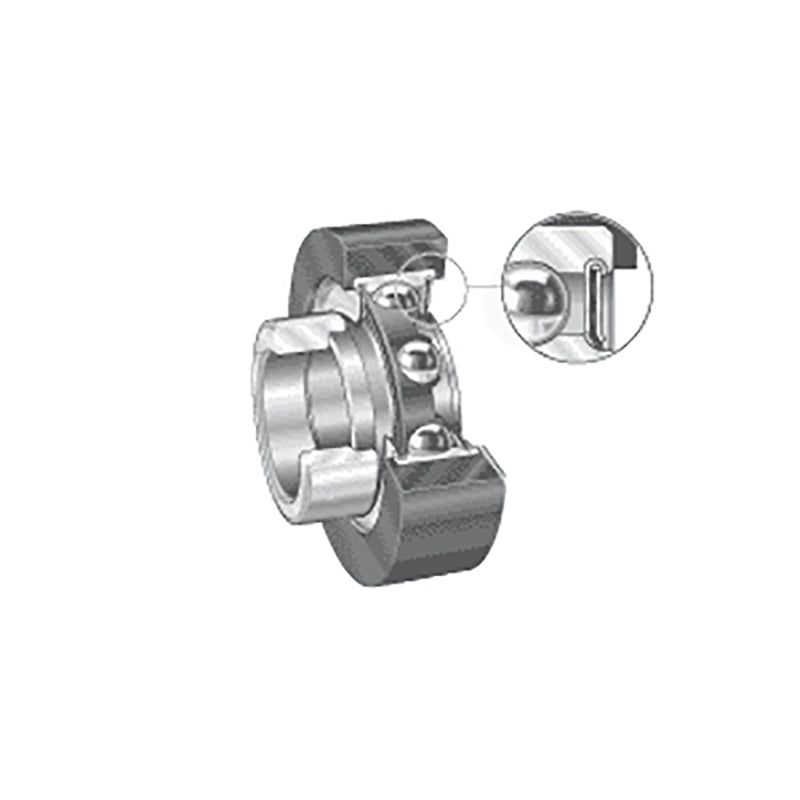

• INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm
  • INA
1 2

SKU: RCSMB17/65-FA106-INA

INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm

INA RCSMB17/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 17x65.1x28.6mm
$38.37 ex VAT
$38.37 ex VAT
Sale Sold out

In stock

Price Break
3+ $25.70
5+ $24.26
10+ $23.97
15+ $23.68
20+ $23.39
30+ $23.10
40+ $21.66
50+ $21.37
60+ $21.08
75+ $20.79
100+ $20.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
17mm
Outside Diameter:
65.1mm
Width:
28.6mm
Technical
d 17mm
D 65.1mm
B1 28.6mm
C 25.4mm
D2 35mm
d3 max 28mm
P 12.7mm
S1 22.1mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 900 N
Dynamic load Cr 9800 N
Static load C0r 4750 N
Designation of bearing 331062
Weight 0.18 kg
