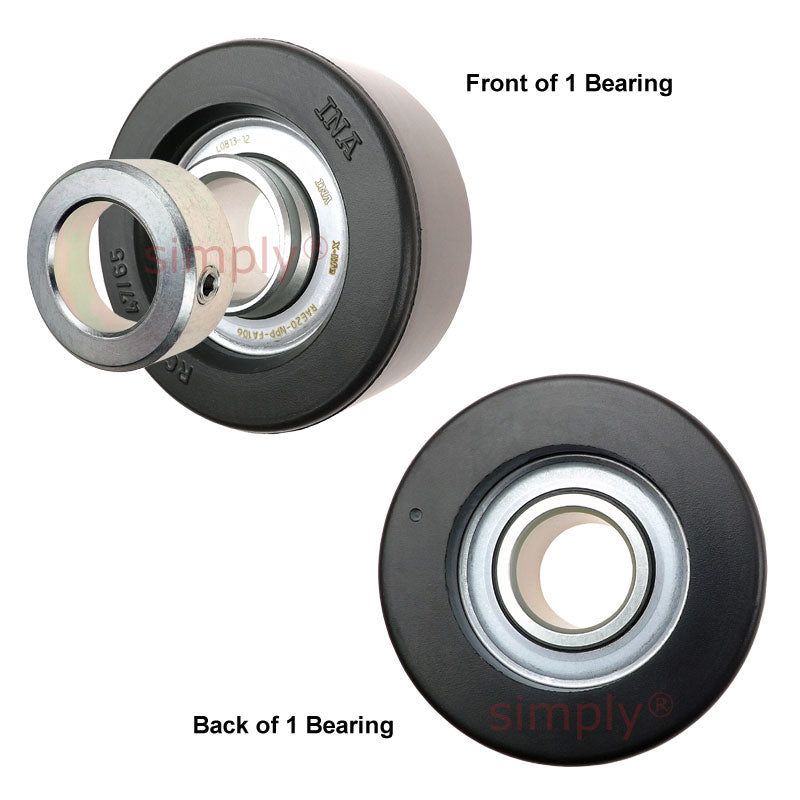

• INA RCSMB20/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x65.1x31mm
  • INA
1 2

SKU: RCSMB20/65-FA106-INA

INA RCSMB20/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x65.1x31mm

INA RCSMB20/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 20x65.1x31mm
$41.24 ex VAT
$41.24 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.63
5+ $26.07
10+ $25.76
15+ $25.45
20+ $25.14
30+ $24.83
40+ $23.28
50+ $22.97
60+ $22.66
75+ $22.35
100+ $21.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Outside Diameter:
65.1mm
Width:
31mm
Technical
d 20mm
D 65.1mm
B1 31mm
C 25.4mm
D2 40mm
d3 max 33mm
P 12.7mm
S1 23.5mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 1200 N
Dynamic load Cr 12800 N
Static load C0r 6600 N
Designation of bearing 331063
Weight 0.22 kg
