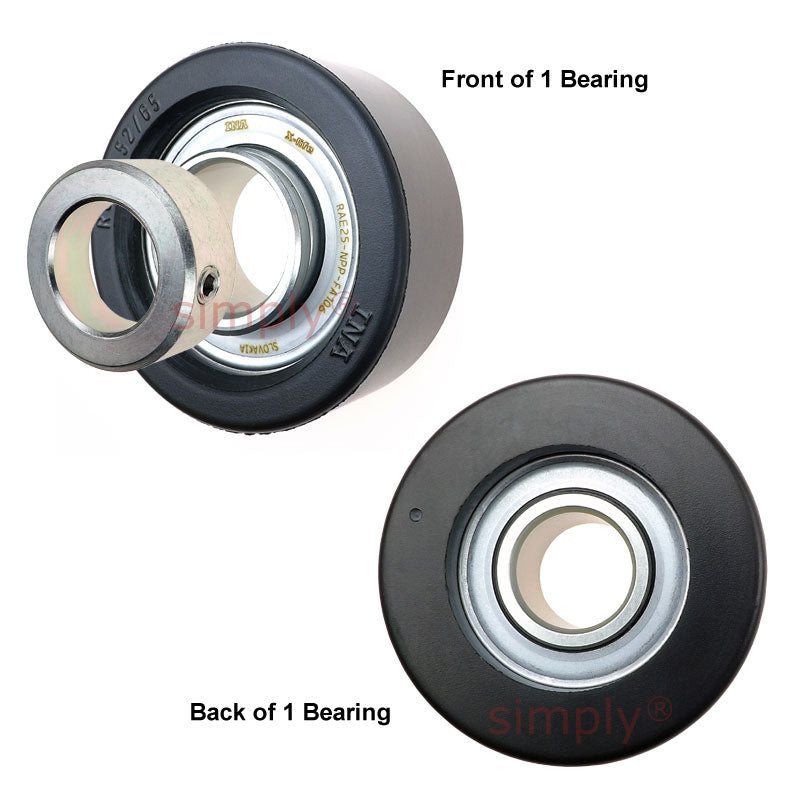

• INA RCSMB25/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x65.1x31mm
  • INA
1 2

SKU: RCSMB25/65-FA106-INA

INA RCSMB25/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x65.1x31mm

INA RCSMB25/65XLFA106 Metric Bearing Insert with Rubber Interliner and P Seals and Eccentric Collar 25x65.1x31mm
$46.25 ex VAT
$46.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.98
5+ $29.24
10+ $28.89
15+ $28.54
20+ $28.20
30+ $27.85
40+ $26.11
50+ $25.76
60+ $25.41
75+ $25.06
100+ $24.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA RCSMA and RCSMB Series Inserts: Bearing insert with rubber interliner, P seals and eccentric collar. The outer ring is encased in a thick-walled NBR interliner. The interliner absorbs vibrations and shocks and thus gives damping of running noises. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. These bearings cannot be lubricated. Operating temperature range: -20 deg C to +85 deg C.
Benefits: Corrotect® coated to protect against fretting corrosion.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Outside Diameter:
65.1mm
Width:
31mm
Technical
d 25mm
D 65.1mm
B1 31mm
C 25.4mm
D2 46mm
d3 max 37.5mm
P 12.7mm
S1 23.5mm
Operating temperature -20 deg C to +85 deg C
Rubber ring: hardness, Shore A 70 deg
Rubber ring: load carrying capacity Cg 1400 N
Dynamic load Cr 14000 N
Static load C0r 7800 N
Designation of bearing 331064
Weight 0.24 kg
