SKU: RCSMF15-XL-INA

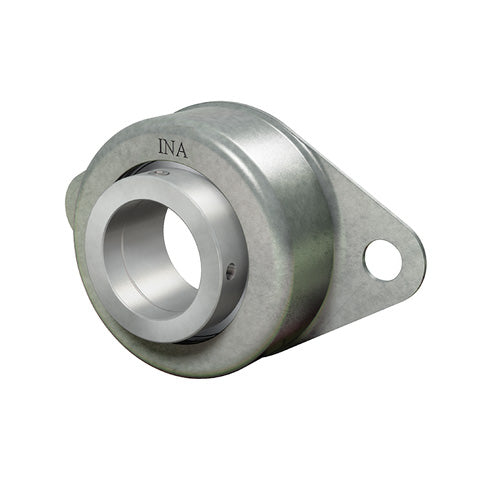

INA RCSMF15XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 15mm Bore

Name: INA RCSMF15XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 15mm Bore
Brand: INA
SKU: RCSMF15-XL-INA
Price: 47.43 USD
Availability: InStock

$47.43 ex VAT

Sale Sold out

In stock

Price Break

4+ $31.77

9+ $29.99

19+ $29.63

29+ $29.27

39+ $28.92

49+ $28.56

59+ $26.78

69+ $26.42

79+ $26.06

89+ $25.70

99+ $24.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: INA - High Quality
Inside Diameter:: 15mm
Style:: RCSMF
Bolt Hole Centres:: 92mm

Technical

d	15mm
H	114mm
U	34.8mm
A	27mm
A2	12.7mm
B1	28.6mm
d3 max	28.4mm
J	92mm
L	70mm
N	10.5mm
S	1.5mm
V	68mm
Mass	0.27 kg
Load carrying capacity of housing Cor G	900 N
Basic dynamic load rating Cr	10100 N
Basic static load rating Cor	4750 N
Designation of housing	FLAN65-RCSMF
Designation of bearing	RAE15-XL-NPP-FA106
Designation of rubber interliner	GRG.RCSM40/65
