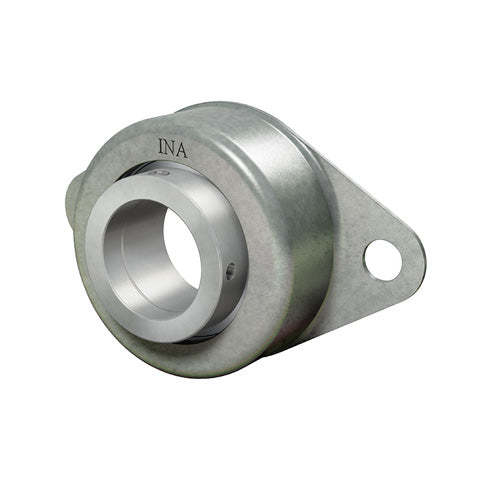

• INA RCSMF20XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 20mm Bore
  • INA
1 2

SKU: RCSMF20-XL-INA

INA RCSMF20XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 20mm Bore

INA RCSMF20XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 20mm Bore
$50.04 ex VAT
$50.04 ex VAT
Sale Sold out

In stock

Price Break
4+ $33.52
9+ $31.63
19+ $31.26
29+ $30.88
39+ $30.50
49+ $30.13
59+ $28.25
69+ $27.87
79+ $27.49
89+ $27.12
99+ $26.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise.
Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise.
Brand / Quality:
INA - High Quality
Inside Diameter:
20mm
Style:
RCSMF
Bolt Hole Centres:
92mm
Technical
d 20mm
H 114mm
U 36.2mm
A 27mm
A2 12.7mm
B1 31mm
d3 max 33mm
J 92mm
L 70mm
N 10.5mm
S 1.5mm
V 68mm
Mass 0.32 kg
Load carrying capacity of housing Cor G 1100 N
Basic dynamic load rating Cr 13600 N
Basic static load rating Cor 6600 N
Designation of housing FLAN65-RCSMF
Designation of bearing RAE20-XL-NPP-FA106
Designation of rubber interliner GRG.RCSM47/65
