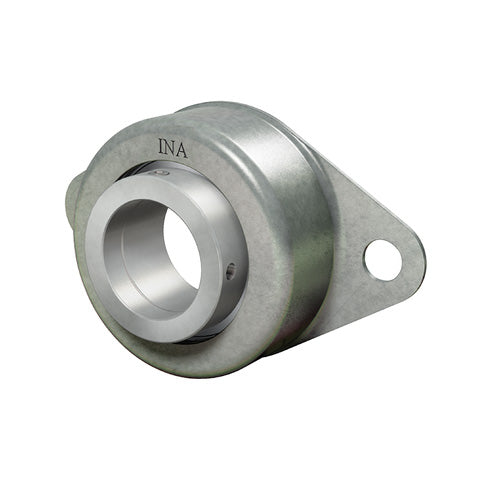

• INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore
  • INA
1 2

SKU: RCSMF25-XL-INA

INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore

INA RCSMF25XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 25mm Bore
$55.96 ex VAT
$55.96 ex VAT
Sale Sold out

In stock

Price Break
4+ $37.49
9+ $35.38
19+ $34.96
29+ $34.54
39+ $34.12
49+ $33.70
59+ $31.59
69+ $31.17
79+ $30.75
89+ $30.33
99+ $29.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise.
Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
RCSMF
Bolt Hole Centres:
92mm
Technical
d 25mm
H 114mm
U 36.2mm
A 27mm
A2 12.7mm
B1 31mm
d3 max 37.5mm
J 92mm
L 70mm
N 10.5mm
S 1.5mm
V 68mm
Mass 0.33 kg
Load carrying capacity of housing Cor G 1400 N
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing FLAN65-RCSMF
Designation of bearing RAE25-XL-NPP-FA106
Designation of rubber interliner GRG.RCSM52/65
