SKU: RCSMF30-XL-INA

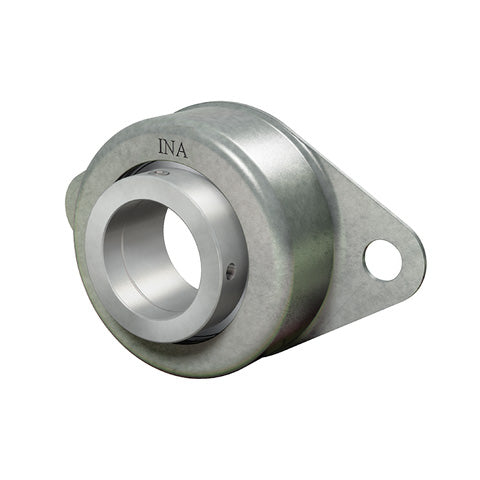

INA RCSMF30XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 30mm Bore

Name: INA RCSMF30XL Two Bolt Sheet Steel Oval Housing with Eccentric Collar Insert with Rubber Interliner 30mm Bore
Brand: INA
SKU: RCSMF30-XL-INA
Price: 64.95 USD
Availability: InStock

$64.95 ex VAT

Sale Sold out

In stock

Price Break

4+ $43.50

9+ $41.06

19+ $40.57

29+ $40.08

39+ $39.59

49+ $39.10

59+ $36.66

69+ $36.17

79+ $35.68

89+ $35.19

99+ $34.22

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which absorbs shock and vibrations. This reduces running noise.
Benefits: Suitable for a lightweight construction, eccentric collar, reduced running noise.

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: RCSMF
Bolt Hole Centres:: 92mm

Technical

d	30mm
H	114mm
U	35mm
A	27mm
A2	15mm
B1	26.5mm
d3 max	42.5mm
J	92mm
L	70mm
N	10.5mm
S	1.5mm
V	68mm
Mass	0.32 kg
Load carrying capacity of housing Cor G	1400 N
Basic dynamic load rating Cr	14100 N
Basic static load rating Cor	8300 N
Designation of housing	FLAN65-RCSMF
Designation of bearing	RALE30-XL-NPP-FA106
Designation of rubber interliner	GRG.RCSM55/65
