SKU: RM30HF-MB

Major Branded RM30HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 75mm / 3 inch

Major Branded RM30HF Rigid Shaft Coupling Inner/Outer Taper Bores Max Bush Bore 75mm / 3 inch
$264.98 ex VAT
$264.98 ex VAT
Sale Sold out

Equivalent to: RM30HF-3020

In stock

Price Break
10+ $177.49
19+ $167.52
29+ $165.53
39+ $163.53
49+ $161.54
74+ $159.54
99+ $149.57
199+ $147.58
249+ $145.58
499+ $143.59
999+ $139.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

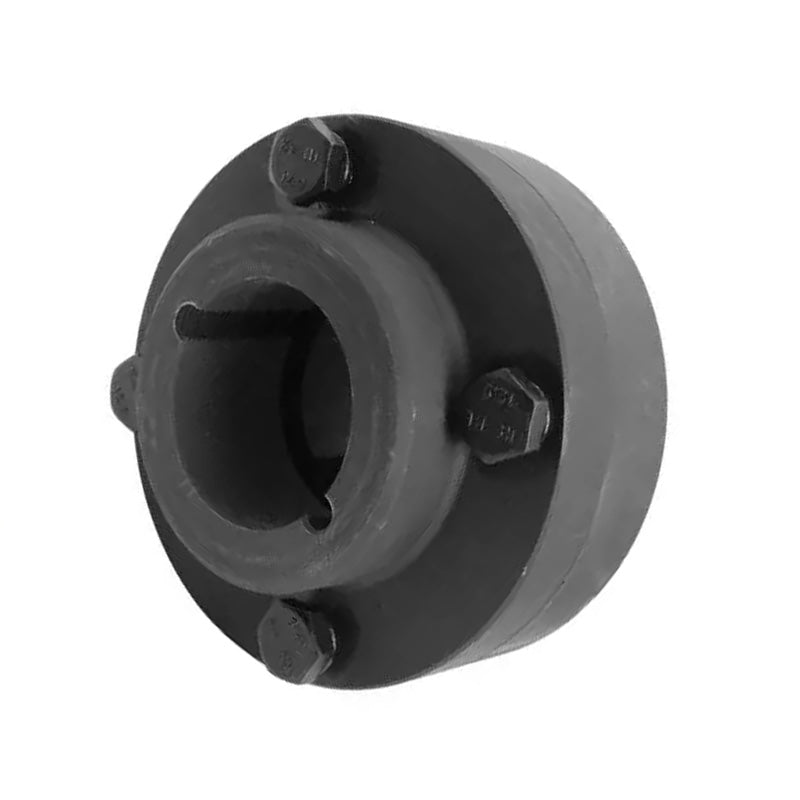

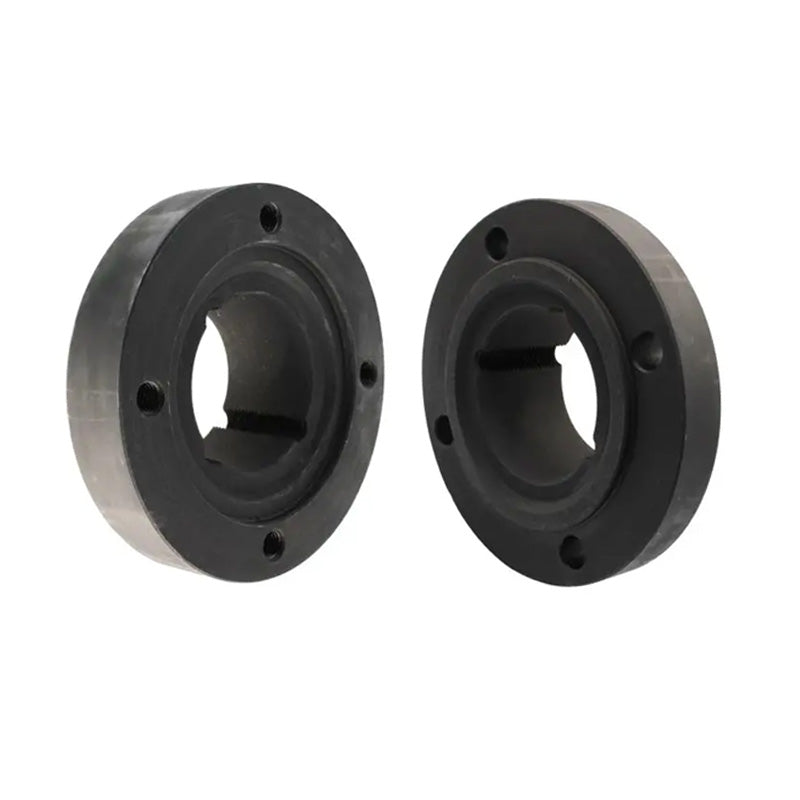

Major Branded Rigid Shaft Coupling Inner/Outer Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (F) on one flange and on the hub side (H) on the other flange.

Brand / Quality:
Major Brand - High Quality
Max Bore:
75mm or 3 inch
Technical
Bush 3020<a href="advanced_search_result.php?keywords=taper+lock+bush+3020"> [Click Here]</a>
Max Bore Size 75mm
Inch 3 inch
A 216mm
C 65mm
D 146mm
E 51mm
F Nominal 152mm
G Nominal 181mm
H &clubs; 7mm
J &spades; 54mm
L 109mm
Mass &hearts; 20kg
