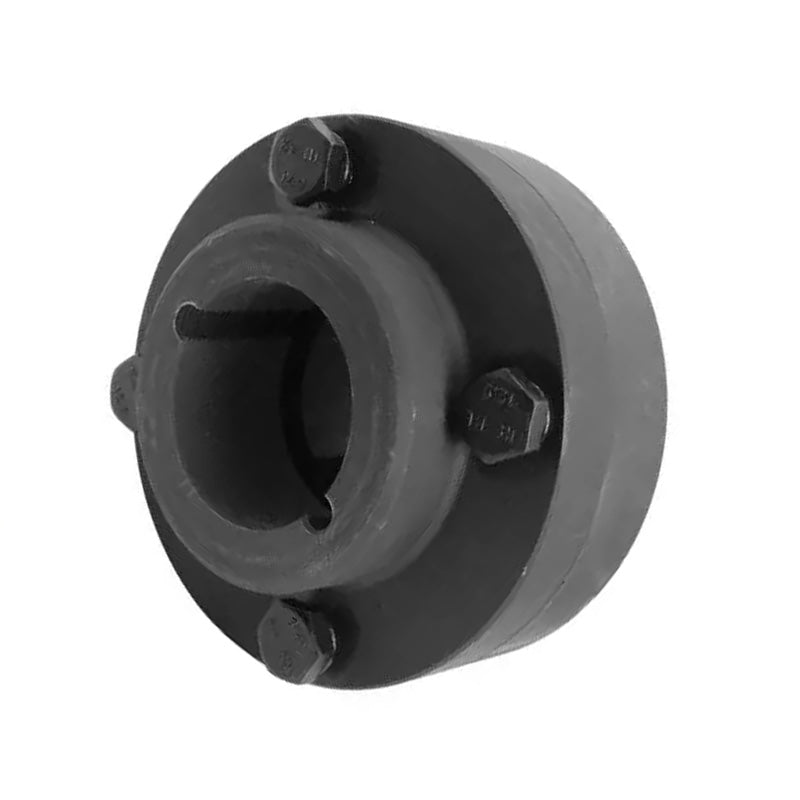

Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch

SKU: RM40FF-MB

Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch

$555.65 ex VAT
$555.65
ex VAT
Equivalent to: RM40FF-4030
Not in stock

Quantity Price Breaks

10 $494.53
19 $466.75
29 $461.19
39 $455.63
49 $450.08
74 $444.52
99 $416.74
199 $411.18
249 $405.62
499 $400.07
999 $388.96
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch
SKU: RM40FF-MB

Major Branded RM40FF Rigid Shaft Coupling with Inner Taper Bores Max Bush Bore 110mm / 4-1/2 inch

$555.65 ex VAT
$555.65
ex VAT

Description

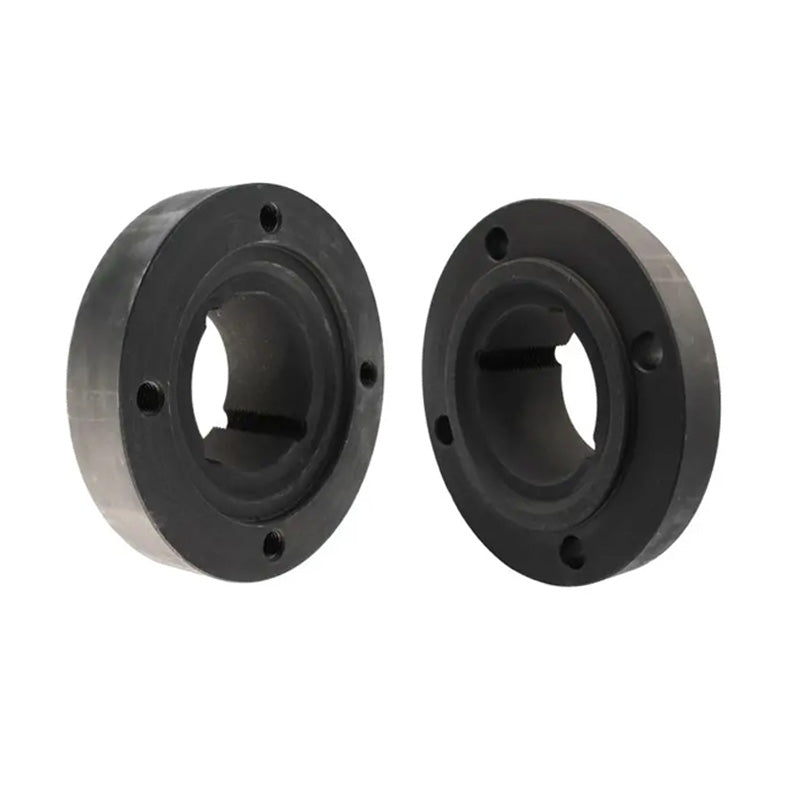

Major Branded Rigid Shaft Coupling with Inner Taper Bores: Taper Bore Rigid Couplings provide a convenient method of rigidly connecting ends of shafts. Supplied as a complete coupling assembly except for the tapered locking bush (link below). The large diameter of the tape bore is on the flange side (FF).

Technical

Bush = 4030<
a href=" = advanced_search_result.php?keywords=taper+lock+bush+4030"
> = [Click Here]<
/a> =
Max Bore Size = 110mm
Inch = 4-1/2 inch
A = 298mm
C = 76mm
D = 210mm
E = 76mm
F Nominal = 216mm
G Nominal = 257mm
H & = clubs
= 7mm
J & = spades
= 79mm
L = 159mm
Mass & = hearts
= 59kg

Downloads

Download: GenericFileDrop
