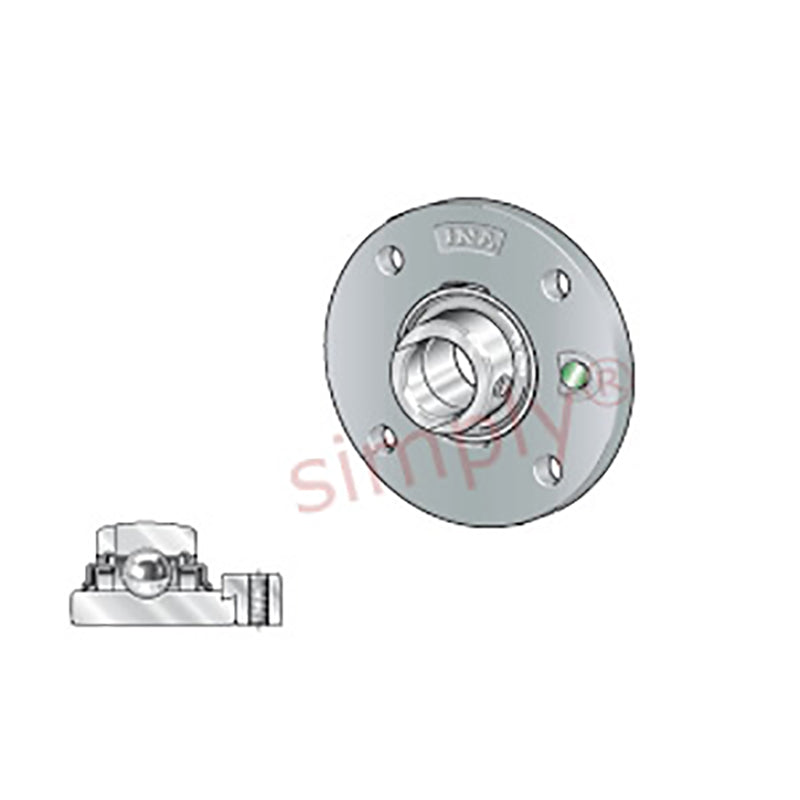

• INA RME100XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 100mm Bore
  • INA
1 2

SKU: RME100-XL-INA

INA RME100XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 100mm Bore

INA RME100XL Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 100mm Bore
$1,086.46 ex VAT
$1,086.46 ex VAT
Sale Sold out

In stock

Price Break
4+ $727.74
9+ $686.86
19+ $678.68
29+ $670.51
39+ $662.33
49+ $654.15
59+ $613.27
69+ $605.09
79+ $596.91
89+ $588.74
99+ $572.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
100mm
Style:
RME
Pitch Circle Diameter:
245mm
Technical
d 100mm
H 295mm
B1 75mm
A 36mm
A1 22mm
A2 -4mm
d3 max 132mm
J 245
N 23mm
Q M6
S 3mm
U 53.4mm
Z 210mm (Tolerance: h8)
Mass 11.45 kg
Basic dynamic load rating Cr 130000 N
Basic static load rating Cor 93000 N
Designation of housing ME20
Designation of bearing GE100-XL-KRR-B
