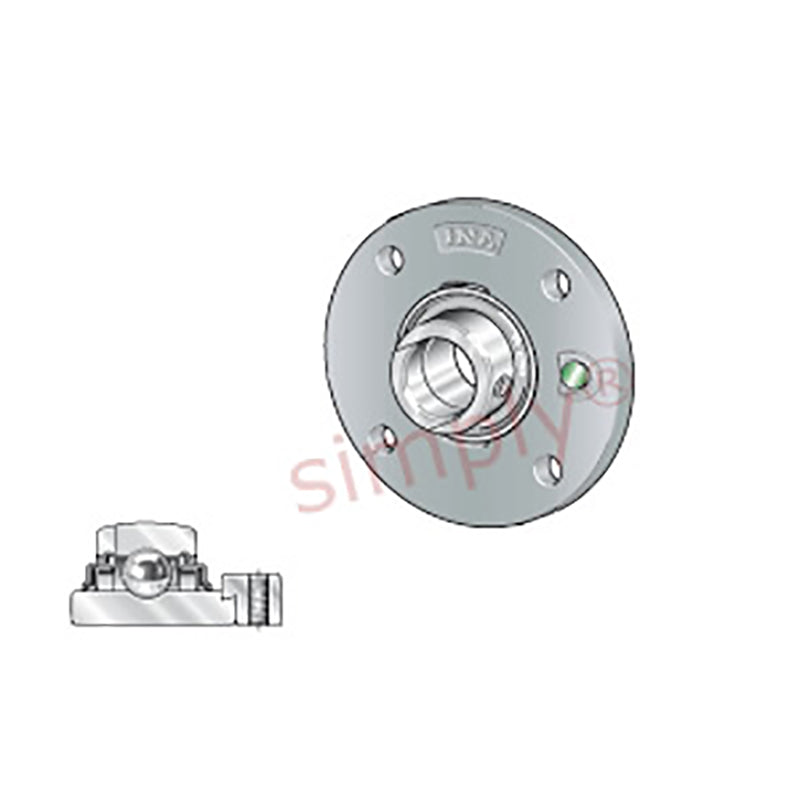

• INA RME25XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 25mm Bore
  • INA
1 2

SKU: RME25-XL-N-INA

INA RME25XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 25mm Bore

INA RME25XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 25mm Bore
$63.18 ex VAT
$63.18 ex VAT
Sale Sold out

In stock

Price Break
4+ $42.32
9+ $39.94
19+ $39.47
29+ $38.99
39+ $38.52
49+ $38.04
59+ $35.66
69+ $35.19
79+ $34.71
89+ $34.24
99+ $33.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
25mm
Style:
RME
Pitch Circle Diameter:
90mm
Technical
d 25mm
H 115mm
B1 44.5mm
A 19mm
A1 9mm
A2 2.5mm
d3 max 37.5mm
J 90
N 9mm
Q M6
S 2mm
U 24.4mm
Z 70mm (Tolerance: h8)
Mass 0.8 kg
Basic dynamic load rating Cr 14900 N
Basic static load rating Cor 7800 N
Designation of housing ME05
Designation of bearing GE25-XL-KRR-B
Bearing end cap, closed design (to be ordered seperately) KASK05
