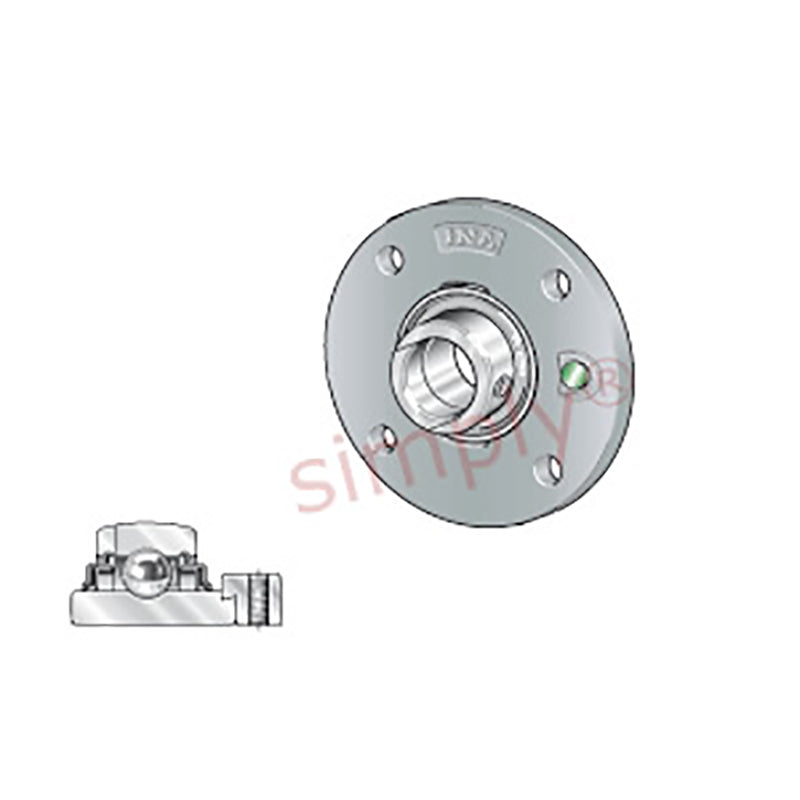

• INA RME50XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 50mm Bore
  • INA
1 2

SKU: RME50-XL-N-INA

INA RME50XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 50mm Bore

INA RME50XLN Four Bolt Cast Iron Round Housing with Eccentric Collar Insert 50mm Bore
$130.04 ex VAT
$130.04 ex VAT
Sale Sold out

In stock

Price Break
4+ $87.10
9+ $82.21
19+ $81.23
29+ $80.25
39+ $79.27
49+ $78.30
59+ $73.40
69+ $72.42
79+ $71.45
89+ $70.47
99+ $68.51

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
INA 4 Bolt Round Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This round cast iron housing has through holes for location purposes and a centring spigot. The centring spigot is mounted in a turned recess in the machine structure. This gives concentric alignment of the housings and relieves the fixing screws of any radial forces. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out.
Benefits: Re-lubricatable, eccentric collar, centring spigot, tolerates misalignment of the shaft.
Brand / Quality:
INA - High Quality
Inside Diameter:
50mm
Style:
RME
Pitch Circle Diameter:
135mm
Technical
d 50mm
H 165mm
B1 62.8mm
A 25mm
A1 13mm
A2 1mm
d3 max 69mm
J 135
N 14mm
Q M6
S 3mm
U 37.1mm
Z 110mm (Tolerance: h8)
Mass 2.53 kg
Basic dynamic load rating Cr 37500 N
Basic static load rating Cor 23200 N
Designation of housing ME10
Designation of bearing GE50-XL-KRR-B
Bearing end cap, closed design (to be ordered seperately) KASK10
