SKU: RNA0-12X22X12-NTN

NTN RNA0-12X22X12 Seperable Machined Needle Roller Bearing no Shaft Sleeve 12x22x12mm - Allow 2-3 Days

NTN RNA0-12X22X12 Seperable Machined Needle Roller Bearing no Shaft Sleeve 12x22x12mm - Allow 2-3 Days
Regular price $11.76 ex VAT
Regular price Sale price $11.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $8.76
4+ $8.41
9+ $8.23
19+ $7.97
49+ $7.79
99+ $7.35
499+ $6.20
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

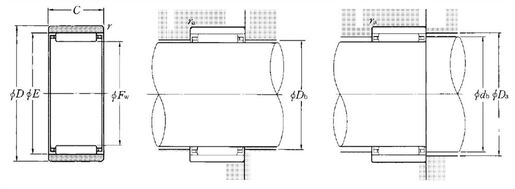

Fw - Under rollers diameter 12mm
D - Outside diameter 22mm
C - Width of bearing, drawn cup or outer ring 12mm
E - Upper roller diameter 18mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 8.65 kN
C0r - Static load rating 8 kN
N - Grease lubrication limit speed 17000 tr/min
N - Oil lubrication limit speed 26000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 17.6mm
Da max - Outer ring maximum shoulder diameter 20mm
Db max - Outer ring maximum smooth shaft shoulder diameter 12.3mm
ras max - Maximum shaft & housing fillet radius 0.3mm
