SKU: RNA0-16X24X13-NTN

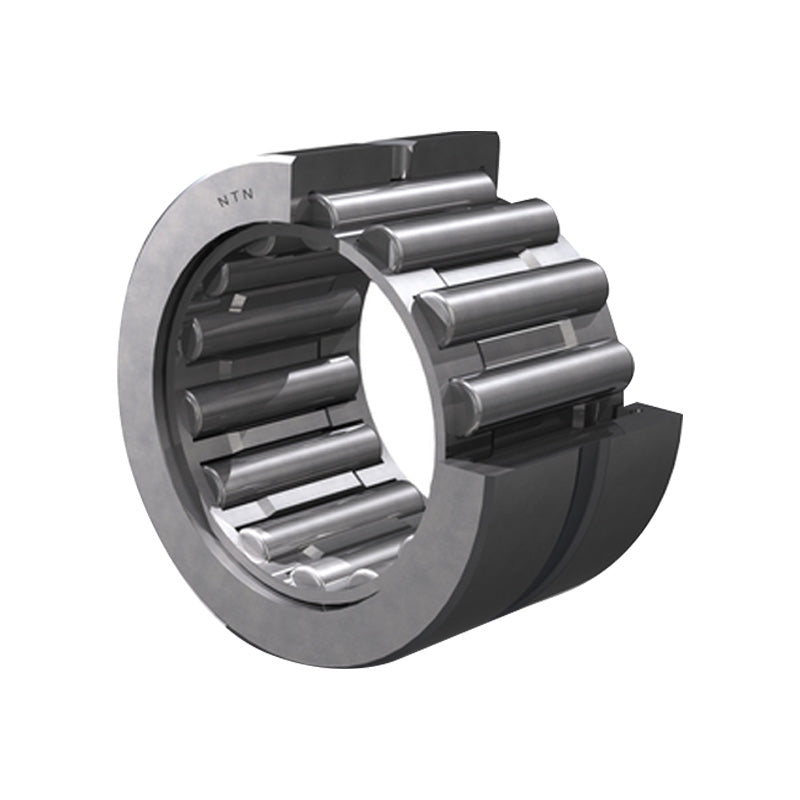

NTN RNA0-16X24X13 Seperable Machined Needle Roller Bearing no Shaft Sleeve 16x24x13mm - Allow 2-3 Days

NTN RNA0-16X24X13 Seperable Machined Needle Roller Bearing no Shaft Sleeve 16x24x13mm - Allow 2-3 Days
Regular price $13.24 ex VAT
Regular price Sale price $13.24 ex VAT
Sale Sold out

In stock

Price Break
3+ $9.86
4+ $9.46
9+ $9.26
19+ $8.96
49+ $8.76
99+ $8.27
499+ $6.97
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 16mm
D - Outside diameter 24mm
C - Width of bearing, drawn cup or outer ring 13mm
E - Upper roller diameter 20mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? No
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 9.05 kN
C0r - Static load rating 11.8 kN
N - Grease lubrication limit speed 15000 tr/min
N - Oil lubrication limit speed 23000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 19.6mm
Da max - Outer ring maximum shoulder diameter 22mm
Db max - Outer ring maximum smooth shaft shoulder diameter 16.4mm
ras max - Maximum shaft & housing fillet radius 0.3mm
