SKU: RNA0-20X28X26ZW-NTN

NTN RNA0-20X28X26ZW Seperable Double Row Machined Needle Roller Bearing no Shaft Sleeve 20x28x26mm - Allow 2-3 Days

NTN RNA0-20X28X26ZW Seperable Double Row Machined Needle Roller Bearing no Shaft Sleeve 20x28x26mm - Allow 2-3 Days
Regular price $26.47 ex VAT
Regular price Sale price $26.47 ex VAT
Sale Sold out

In stock

Price Break
3+ $19.72
4+ $18.92
9+ $18.53
19+ $17.93
49+ $17.53
99+ $16.53
499+ $13.94
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

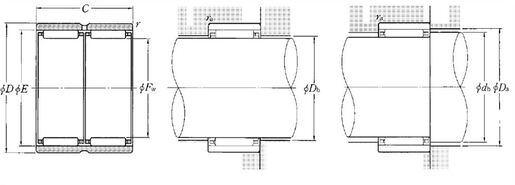

Technical
Fw - Under rollers diameter 20mm
D - Outside diameter 28mm
C - Width of bearing, drawn cup or outer ring 26mm
E - Upper roller diameter 24mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 17.1 kN
C0r - Static load rating 28.6 kN
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 20000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
db - Inner ring shoulder diameter 23.6mm
Da max - Outer ring maximum shoulder diameter 26mm
Db max - Outer ring maximum smooth shaft shoulder diameter 20.4mm
ras max - Maximum shaft & housing fillet radius 0.3mm
