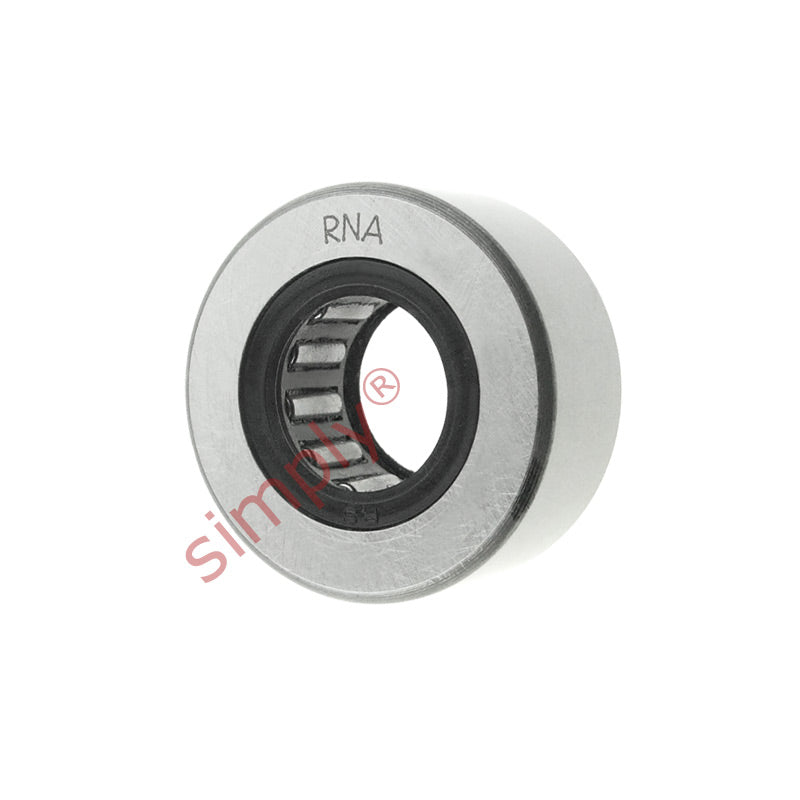

• RNA22/62RS Budget Support Roller with 2 Rubber Seals 10x19x11.8mm
1 1

SKU: RNA22/6.2RS-EU

RNA22/62RS Budget Support Roller with 2 Rubber Seals 10x19x11.8mm

RNA22/62RS Budget Support Roller with 2 Rubber Seals 10x19x11.8mm
$18.27 ex VAT
$18.27 ex VAT
Sale Sold out

Equivalent to: RNA22/6LL

In stock

Price Break
10+ $12.24
19+ $11.55
29+ $11.42
39+ $11.28
49+ $11.14
74+ $11.00
99+ $10.32
199+ $10.18
249+ $10.04
499+ $9.90
999+ $9.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
10mm
Outside Diameter:
19mm
Width:
11.8mm
Seals / Shields:
Rubber Seals
Technical
D 19mm
C 11.8mm
Fw 10mm
D1 16mm
r min 0.3mm
Speed rating 9000 rpm
Dynamic load 3520 N
Static load 3000 N
Fatigue load limit Pu 340 N
Min radial force dynamic load 1930 N
Max radial force dynamic load 2750 N
Weight 18 g
