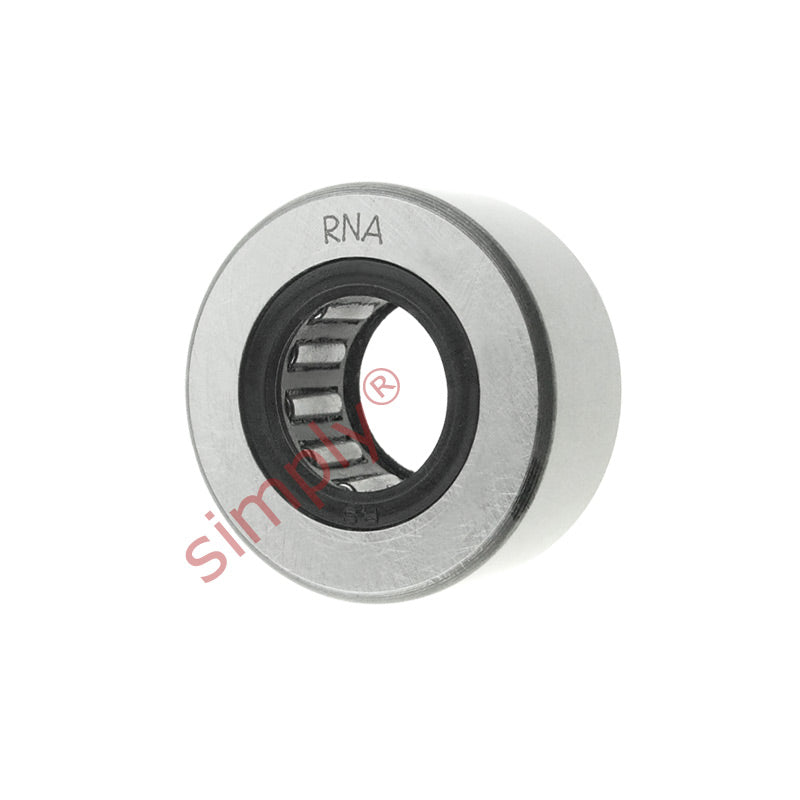

• RNA22/82RS Budget Support Roller with 2 Rubber Seals 12x24x11.8mm
1 1

SKU: RNA22/8.2RS-EU

RNA22/82RS Budget Support Roller with 2 Rubber Seals 12x24x11.8mm

RNA22/82RS Budget Support Roller with 2 Rubber Seals 12x24x11.8mm
$20.28 ex VAT
$20.28 ex VAT
Sale Sold out

Equivalent to: RNA22/8LL

In stock

Price Break
10+ $13.58
19+ $12.82
29+ $12.67
39+ $12.51
49+ $12.36
74+ $12.21
99+ $11.45
199+ $11.29
249+ $11.14
499+ $10.99
999+ $10.68

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
12mm
Outside Diameter:
24mm
Width:
11.8mm
Seals / Shields:
Rubber Seals
Technical
D 24mm
C 11.8mm
Fw 12mm
D1 18mm
r min 0.3mm
Speed rating 7000 rpm
Dynamic load 4460 N
Static load 4400 N
Fatigue load limit Pu 500 N
Min radial force dynamic load 5000 N
Max radial force dynamic load 7100 N
Weight 29 g
