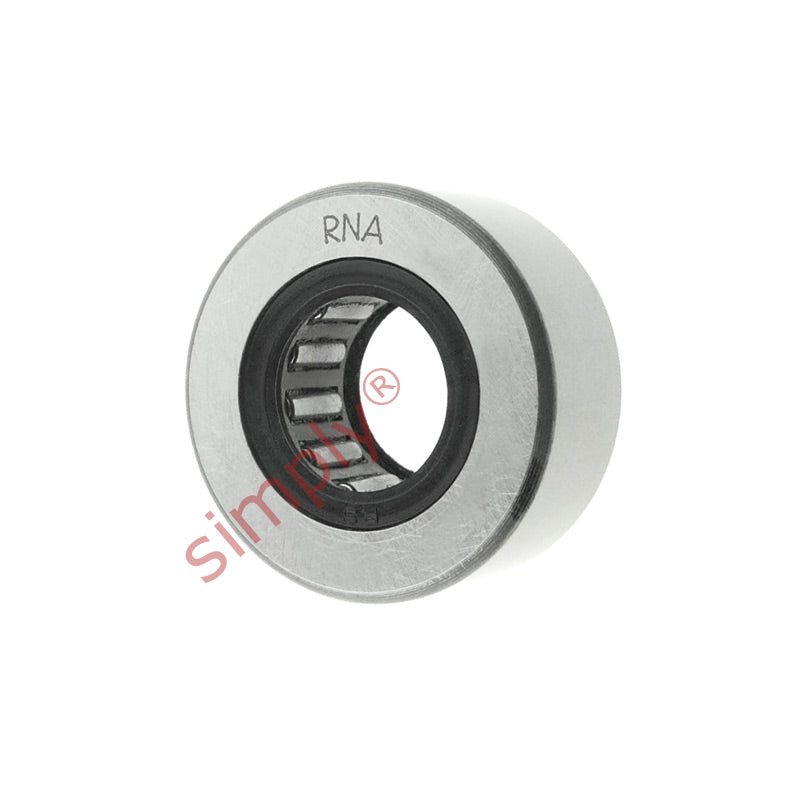

• RNA22012RS Budget Support Roller with 2 Rubber Seals 16x32x13.8mm
1 1

SKU: RNA2201.2RS-EU

RNA22012RS Budget Support Roller with 2 Rubber Seals 16x32x13.8mm

RNA22012RS Budget Support Roller with 2 Rubber Seals 16x32x13.8mm
$20.36 ex VAT
$20.36 ex VAT
Sale Sold out

Equivalent to: RNA2201LL

In stock

Price Break
10+ $13.64
19+ $12.87
29+ $12.72
39+ $12.56
49+ $12.41
74+ $12.26
99+ $11.49
199+ $11.34
249+ $11.18
499+ $11.03
999+ $10.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
32mm
Width:
13.8mm
Seals / Shields:
Rubber Seals
Technical
D 32mm
C 13.8mm
Fw 16mm
D1 22mm
r min 0.6mm
Speed rating 4700 rpm
Dynamic load 6930 N
Static load 8150 N
Fatigue load limit Pu 965 N
Min radial force dynamic load 11600 N
Max radial force dynamic load 16600 N
Weight 57 g
