• Major Brand RNA22012RS Support Roller Without Axial Guidance Without Inner Sleeve 16x32x13.8mm
  • Major Brand RNA22012RS Support Roller Without Axial Guidance Without Inner Sleeve 16x32x13.8mm
  • Major Brand RNA22012RS Support Roller Without Axial Guidance Without Inner Sleeve 16x32x13.8mm
1 3

SKU: RNA2201.2RS-MB

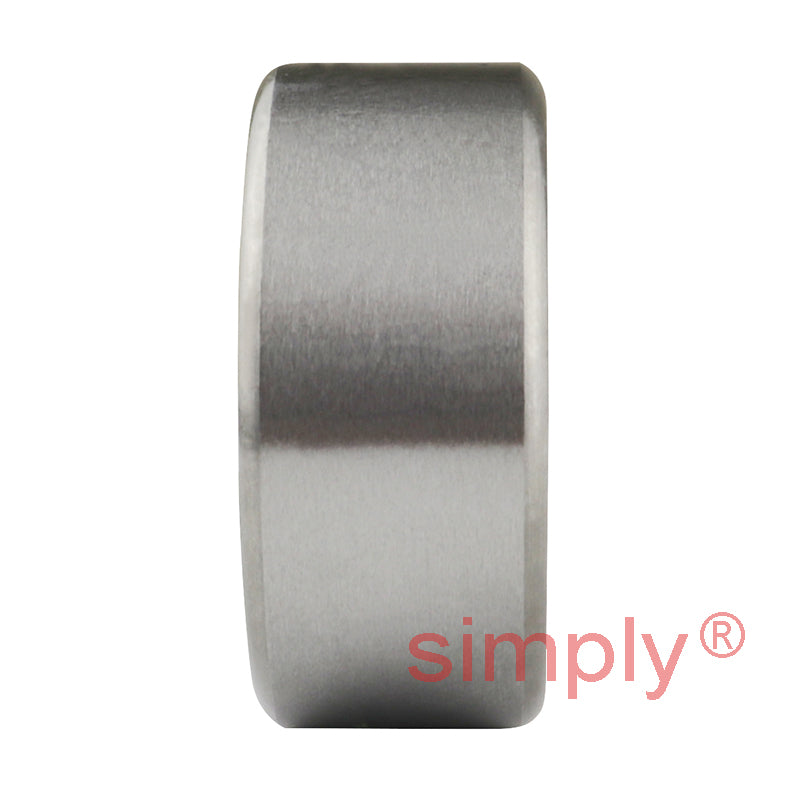

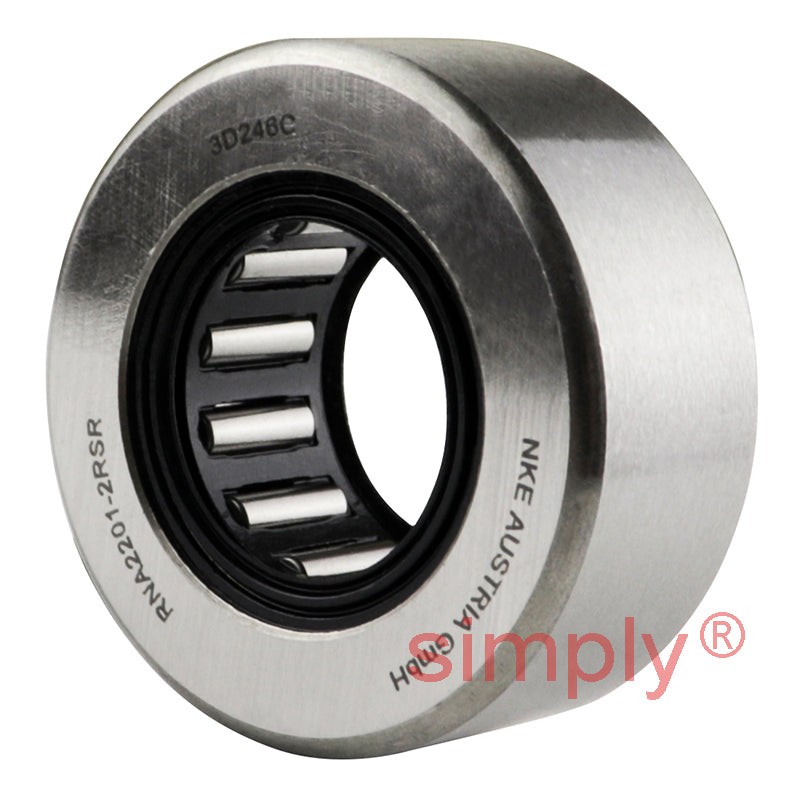

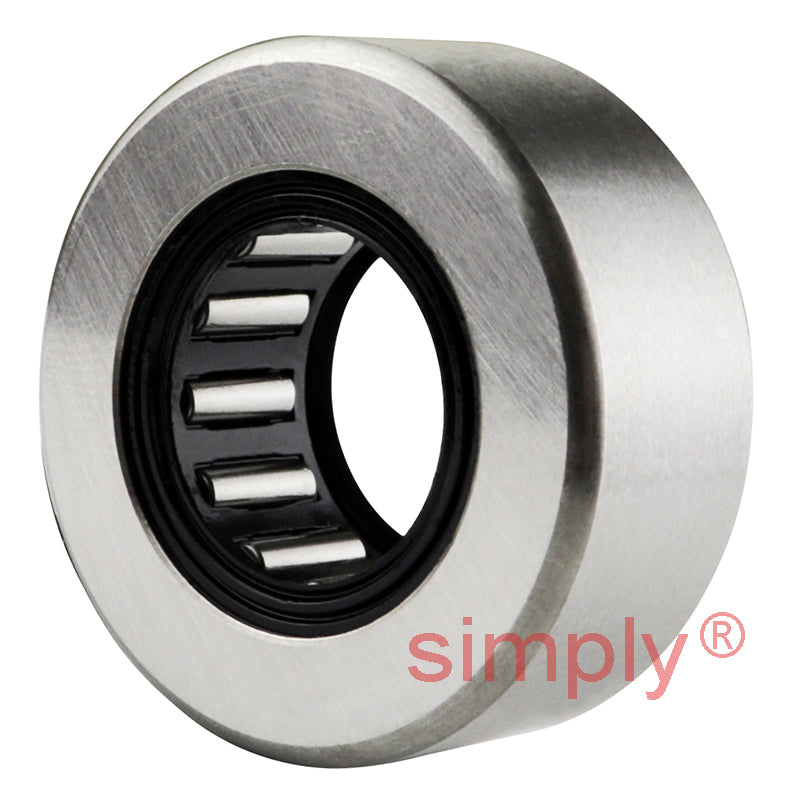

Major Brand RNA22012RS Support Roller Without Axial Guidance Without Inner Sleeve 16x32x13.8mm

Major Brand RNA22012RS Support Roller Without Axial Guidance Without Inner Sleeve 16x32x13.8mm
$37.32 ex VAT
$37.32 ex VAT
Sale Sold out

In stock

Price Break
10+ $25.00
19+ $23.59
29+ $23.31
39+ $23.03
49+ $22.75
74+ $22.47
99+ $21.07
199+ $20.79
249+ $20.50
499+ $20.22
999+ $19.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Support Rollers without Axial Guidance : Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground.
Benefits: Supplied without the inner ring, separable - easily mounted

Brand / Quality:
Major Brand - High Quality
Inside Diameter:
16mm
Outside Diameter:
32mm
Width:
13.8mm
Technical
Fw 16mm
D 32mm
C 13.8mm
D1 22mm
r min 0.6mm
Speed rating 4700 rpm
Dynamic load 6930 N
Static load 8150 N
Fatigue load limit Pu 965 N
Min radial force dynamic load 11600 N
Max radial force dynamic load 16600 N
Weight 57 g
