SKU: RNA2205.2RS-EU

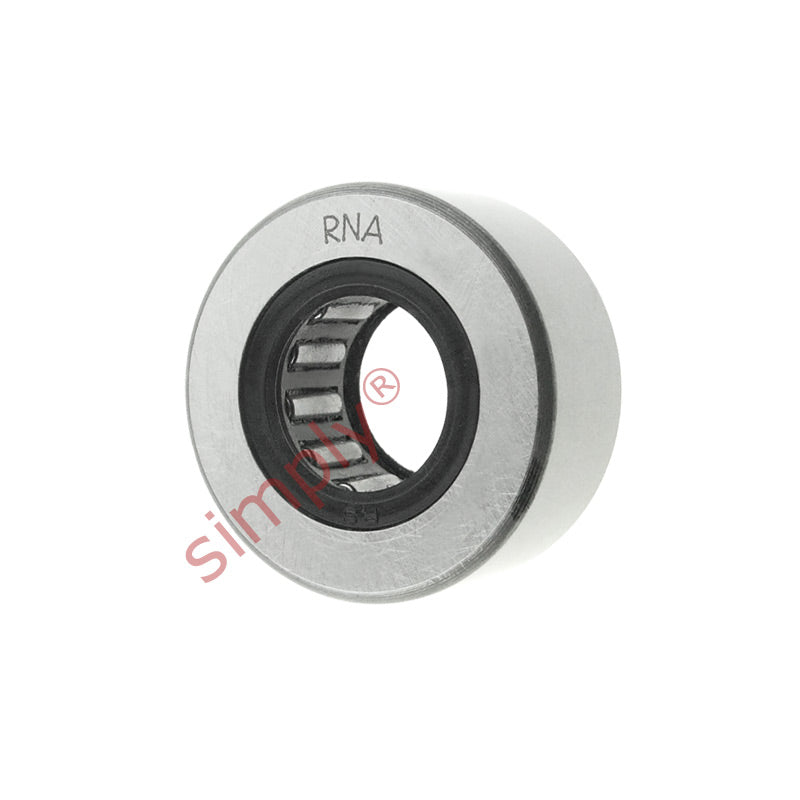

RNA22052RS Budget Support Roller with 2 Rubber Seals 30x52x17.8mm
RNA22052RS Budget Support Roller with 2 Rubber Seals 30x52x17.8mm
Regular price
$27.72
ex VAT
Regular price
Sale price
$27.72
ex VAT
Equivalent to: RNA2205LL
In stock
Price Break
10+
$18.56
19+
$17.52
29+
$17.31
39+
$17.10
49+
$16.89
74+
$16.69
99+
$15.64
199+
$15.43
249+
$15.23
499+
$15.02
999+
$14.60
Quantity
Couldn't load pickup availability
Description
Description
Budget Support Rollers without Axial Guidance: Designed for applications where the associated components can be designed to to provide the axial guidance. The support rollers without inner rings are intended for arrangements where the pin or shaft can be hardened and ground. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 17.8mm
- Seals / Shields:
- Rubber Seals
Technical
Technical
| D | 52mm |
|---|---|
| C | 17.8mm |
| Fw | 30mm |
| D1 | 38mm |
| r min | 1mm |
| Speed rating | 1800 rpm |
| Dynamic load | 16100 N |
| Static load | 19000 N |
| Fatigue load limit Pu | 2320 N |
| Min radial force dynamic load | 17300 N |
| Max radial force dynamic load | 24500 N |
| Weight | 180 g |
