SKU: RNA6902R-NTN

NTN RNA6902R Machined Needle Roller Bearing no Shaft Sleeve 20x28x23mm

NTN RNA6902R Machined Needle Roller Bearing no Shaft Sleeve 20x28x23mm
Regular price $16.86 ex VAT
Regular price Sale price $16.86 ex VAT
Sale Sold out

In stock

Price Break
3+ $11.29
4+ $10.66
9+ $10.53
19+ $10.41
49+ $10.28
99+ $10.15
499+ $9.52
999+ $9.39
1999+ $9.26
2999+ $9.14
4999+ $8.88
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

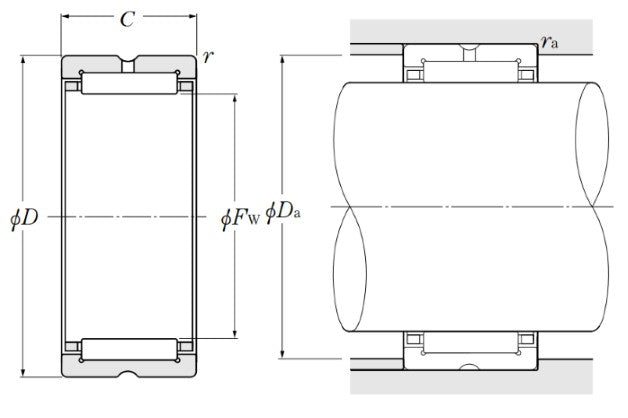

Fw - Under rollers diameter 20mm
D - Outside diameter 28mm
C - Width of bearing, drawn cup or outer ring 23mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 17.6 kN
C0r - Static load rating 25.3 kN
N - Grease lubrication limit speed 13000 tr/min
N - Oil lubrication limit speed 20000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 26mm
ras max - Maximum shaft & housing fillet radius 0.3mm
