SKU: RNAB2/5XT2-NTN

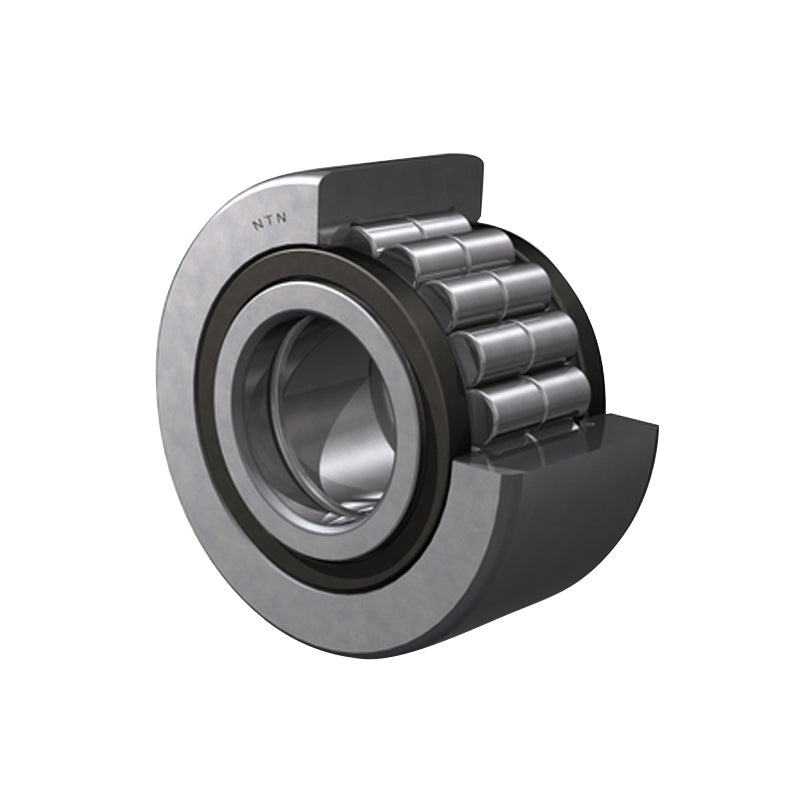

NTN RNAB2/5XT2 Yoke Type Track Roller without Inner Race 7x16x7.8mm - Allow 2-3 Days
NTN RNAB2/5XT2 Yoke Type Track Roller without Inner Race 7x16x7.8mm - Allow 2-3 Days
Regular price
$14.71
ex VAT
Regular price
Sale price
$14.71
ex VAT
In stock
Price Break
3+
$10.96
4+
$10.52
9+
$10.30
19+
$9.96
49+
$9.74
99+
$9.19
499+
$7.75
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
NTN RNA Type Track Rollers: These track rollers are high-performance, non-separable needle roller bearings designed for applications requiring high load capacity and smooth motion. Built with precision-engineered components, these rollers offer excellent rigidity, low friction, and long service life. Ideal for cam mechanisms, conveyors, and linear motion systems, NTN RNA Track Rollers deliver reliable performance even in demanding industrial environments.
Benefits: High load capacity, durable and reliable, easy installation
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 16mm
- Width:
- 7.8mm
Technical
Technical
| Fw - Under roller diameter | 7mm |
|---|---|
| D - Outside diameter | 16mm |
| C - Outer ring width | 7.8mm |
| e - Inlet diameter | 10mm |
| Bearing with/without cage | With |
| Precision class | P0 |
| Cr - Dynamic load rating | 2.82 kN |
| C0r - Static load rating | 2.52 kN |
| Track load capacity | 2.32 kN |
| N - Grease lubrication limit speed | 21000 tr/min |
| N - Oil lubrication limit speed | 27000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
