SKU: RNAFW.304026

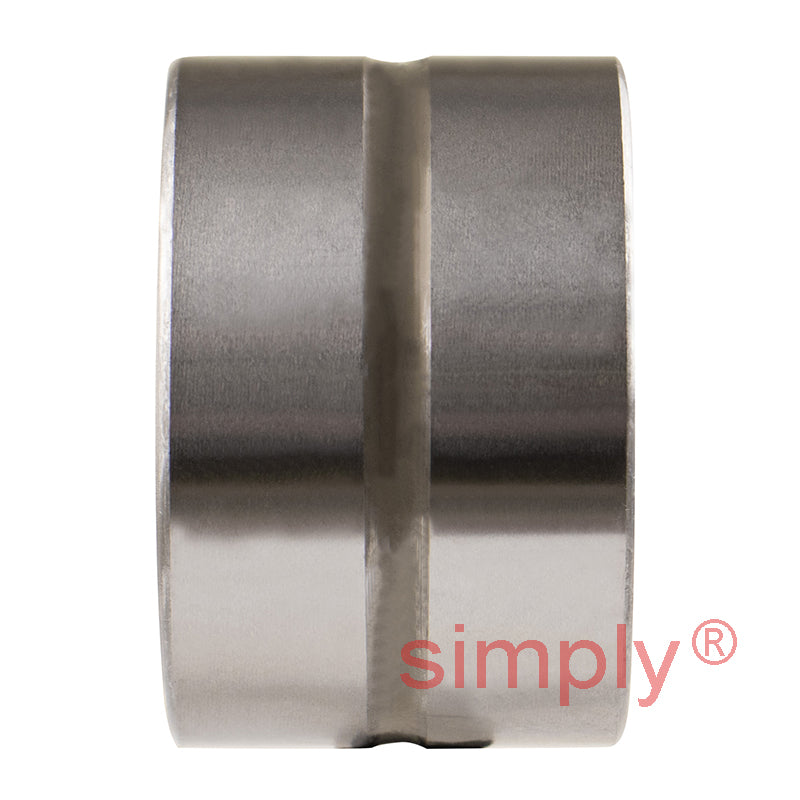

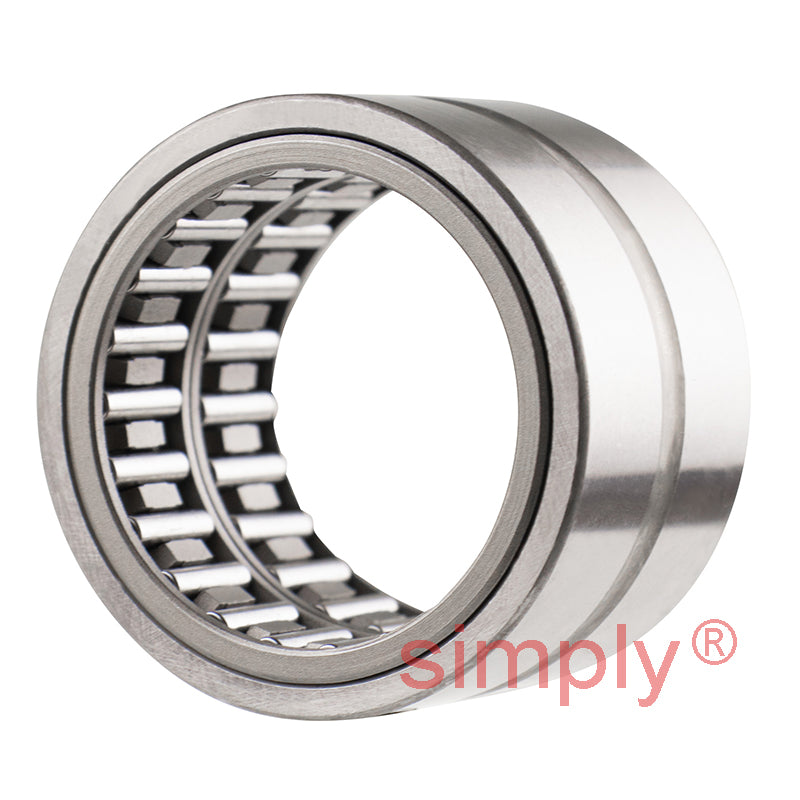

IKO RNAFW304026 Metric Open Type Double Row Needle Roller Bearing 30x40x26mm
Equivalent to: RNAO30x40x26
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
IKO RNAFW Open Type Double Row Needle Roller Bearings: These bearings are designed for high-load capacity applications requiring compact, reliable performance. Featuring a double row of precision-engineered needle rollers, this open-type bearing offers enhanced rigidity and excellent resistance to deformation under heavy radial loads. Its metric dimensions ensure compatibility with international standards, while the open design allows for efficient lubrication and heat dissipation. Ideal for demanding industrial and automotive environments, the IKO RNAFW bearing provides long-lasting durability and smooth operation even in high-speed conditions.
Benefits: High load capacity, compact and space-saving, improved lubrication and cooling
- Brand / Quality:
- IKO - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 40mm
- Width:
- 26mm

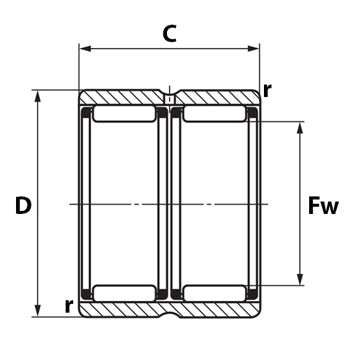

Technical
| Fw | 30mm |
|---|---|
| D | 40mm |
| C | 26mm |
| d | 25mm |
| Dynamic Load Cor | 24200 N |
| Static Load Cr | 43400 N |
| Weight | 0.0905 kg |
