SKU: RNAO7x14x8TN-EU

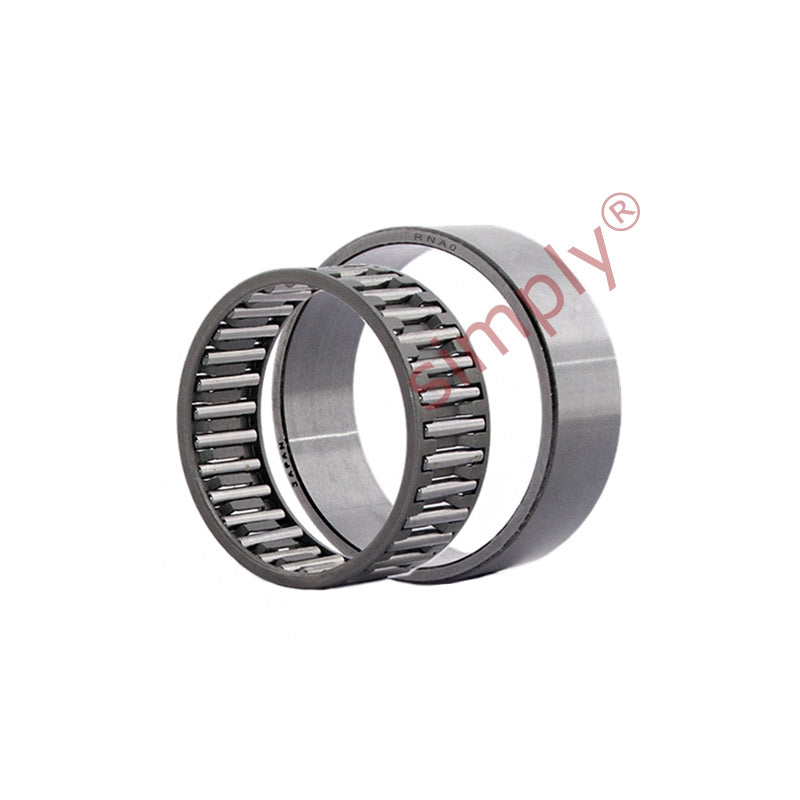

RNAO7x14x8TN Budget Needle Roller Bearing no Flanges or Shaft Sleeve
RNAO7x14x8TN Budget Needle Roller Bearing no Flanges or Shaft Sleeve
Regular price
$10.36
ex VAT
Regular price
Sale price
$10.36
ex VAT
In stock
Price Break
10+
$6.94
19+
$6.55
29+
$6.47
39+
$6.40
49+
$6.32
74+
$6.24
99+
$5.85
199+
$5.77
249+
$5.69
499+
$5.62
999+
$5.46
Quantity
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 7mm
- Outside Diameter:
- 14mm
- Width:
- 8mm
Technical
Technical
| Fw | 7mm |
|---|---|
| D | 14mm |
| C | 8mm |
| Dynamic load C | 2810 N |
| Static load Co | 2750 N |
| Fatigue load limit Pu | 290 N |
| Speed in grease | 20000 rpm |
| Speed in oil | 32000 rpm |
| E | 10mm |
| r1r2 min | 0.3mm |
| da | 9.7mm |
| Da | 10.3mm |
| Db | 7.3mm |
| ra max | 0.3mm |
| Weight | 6 g |
