SKU: RNU1017MA-SKF

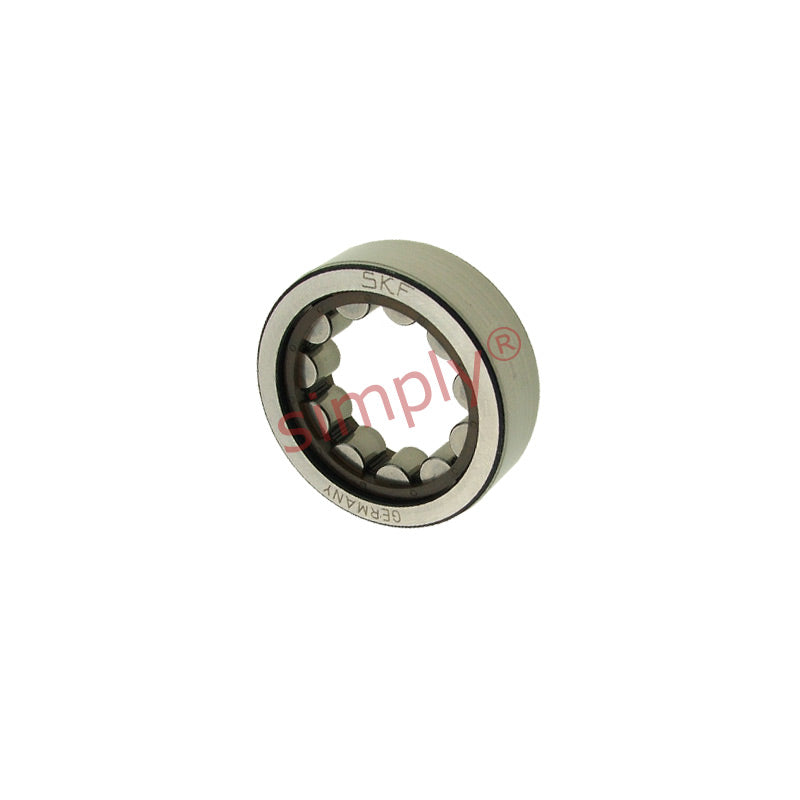

SKF RNU1017MA Single Row Cylindrical Roller Bearing 96.5x130x22mm
SKF RNU1017MA Single Row Cylindrical Roller Bearing 96.5x130x22mm
Regular price
$430.74
ex VAT
Regular price
Sale price
$430.74
ex VAT
In stock
Price Break
10+
$288.52
19+
$272.31
29+
$269.07
39+
$265.83
49+
$262.59
74+
$259.34
99+
$243.14
199+
$239.89
249+
$236.65
499+
$233.41
999+
$226.93
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 96.5mm
- Outside Diameter:
- 130mm
- Width:
- 22mm
Technical
Technical
| d | 96.5mm |
|---|---|
| D | 130mm |
| C | 22mm |
| C1 | 5.5mm |
| Dynamic load | 68.2 kN |
| Static load | 86.5 kN |
| Fatigue load limit Pu | 10.8 kN |
| Reference speed | 6000rpm |
| Limiting speed | 9000rpm |
| r1,2min | 1.1mm |
| Weight | 1.05kg |
