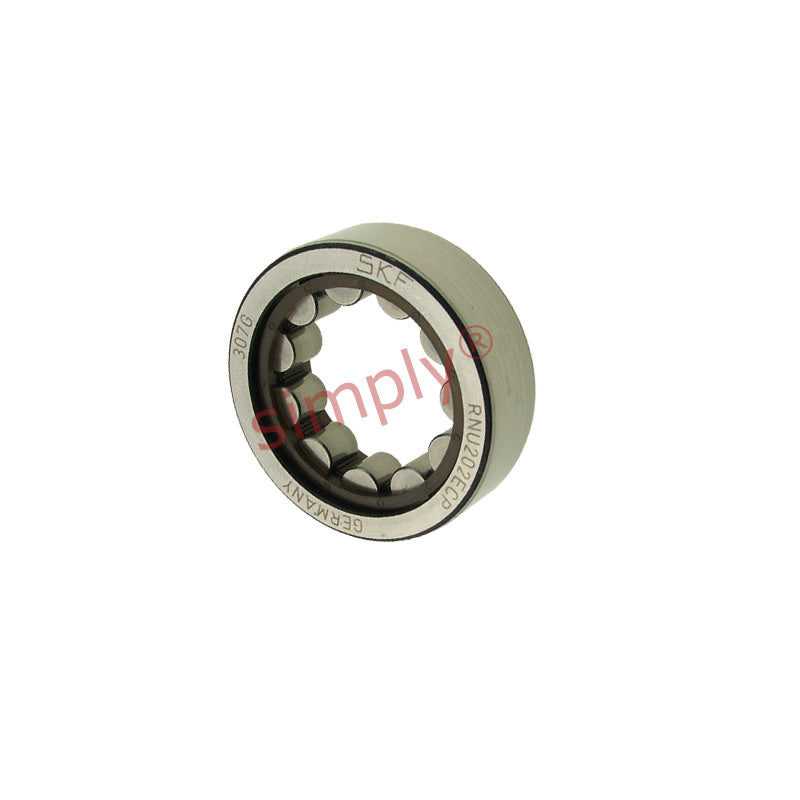

SKF RNU202ECP Single Row Cylindrical Roller Bearing 19.3x35x11mm
SKF RNU202ECP Single Row Cylindrical Roller Bearing 19.3x35x11mm
Regular price
$24.12
ex VAT
Regular price
Sale price
$24.12
ex VAT
In stock
Price Break
10+
$16.15
19+
$15.24
29+
$15.06
39+
$14.88
49+
$14.70
74+
$14.52
99+
$13.61
199+
$13.43
249+
$13.25
499+
$13.06
999+
$12.70
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 19.3mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
Technical
Technical
| d | 19.3mm |
|---|---|
| D | 35mm |
| C | 11mm |
| C1 | 2.5mm |
| Dynamic load | 12.5 kN |
| Static load | 10.2 kN |
| Fatigue load limit Pu | 1.22 kN |
| Reference speed | 22000rpm |
| Limiting speed | 26000rpm |
| r1,2min | 0.6mm |
| Weight | 0.037kg |
