SKU: RNU203TN9-SKF

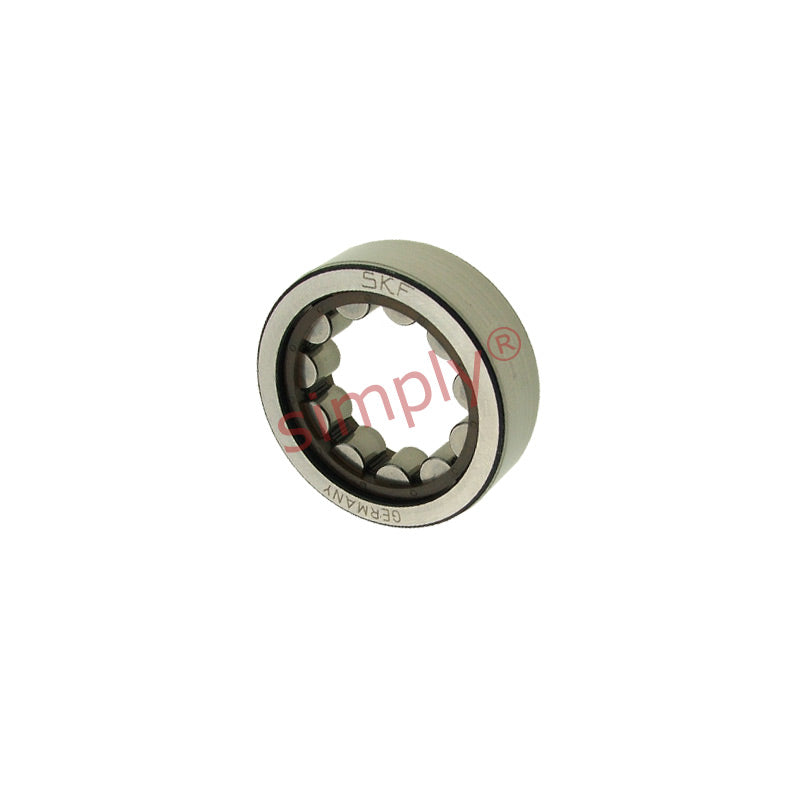

SKF RNU203TN9 Single Row Cylindrical Roller Bearing 22.9x40x12mm
SKF RNU203TN9 Single Row Cylindrical Roller Bearing 22.9x40x12mm
Regular price
$30.49
ex VAT
Regular price
Sale price
$30.49
ex VAT
In stock
Price Break
10+
$20.43
19+
$19.28
29+
$19.05
39+
$18.82
49+
$18.59
74+
$18.36
99+
$17.21
199+
$16.98
249+
$16.75
499+
$16.53
999+
$16.07
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.9mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
Technical
Technical
| d | 22.9mm |
|---|---|
| D | 40mm |
| C | 12mm |
| C1 | 3.25mm |
| Dynamic load | 10.8 kN |
| Static load | 5.2 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 20000rpm |
| Limiting speed | 22000rpm |
| r1,2min | 0.6mm |
| Weight | 0.044kg |
