SKU: RNU204ECP-SKF

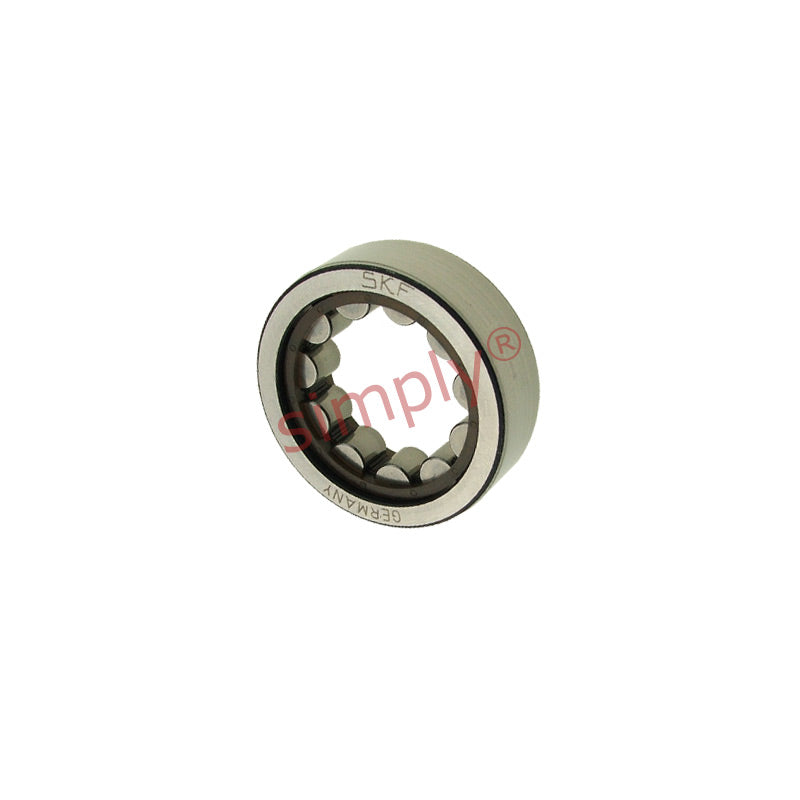

SKF RNU204ECP Single Row Cylindrical Roller Bearing 26.5x47x14mm
SKF RNU204ECP Single Row Cylindrical Roller Bearing 26.5x47x14mm
Regular price
$36.58
ex VAT
Regular price
Sale price
$36.58
ex VAT
In stock
Price Break
10+
$24.50
19+
$23.12
29+
$22.85
39+
$22.57
49+
$22.30
74+
$22.02
99+
$20.65
199+
$20.37
249+
$20.09
499+
$19.82
999+
$19.27
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 26.5mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
Technical
Technical
| d | 26.5mm |
|---|---|
| D | 47mm |
| C | 14mm |
| C1 | 2.5mm |
| Dynamic load | 25.1 kN |
| Static load | 22 kN |
| Fatigue load limit Pu | 2.75 kN |
| Reference speed | 16000rpm |
| Limiting speed | 19000rpm |
| r1,2min | 1mm |
| Weight | 0.083kg |
