SKU: RNU205ECP-SKF

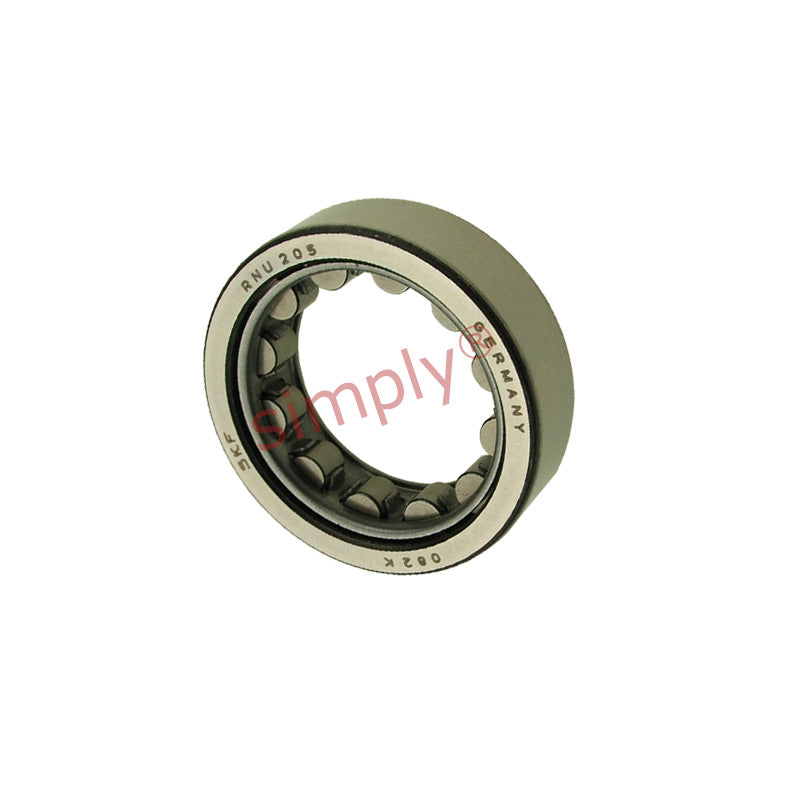

SKF RNU205ECP Single Row Cylindrical Roller Bearing 31.5x52x15mm
SKF RNU205ECP Single Row Cylindrical Roller Bearing 31.5x52x15mm
Regular price
$47.40
ex VAT
Regular price
Sale price
$47.40
ex VAT
In stock
Price Break
10+
$31.74
19+
$29.96
29+
$29.60
39+
$29.25
49+
$28.89
74+
$28.53
99+
$26.75
199+
$26.39
249+
$26.04
499+
$25.68
999+
$24.97
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.5mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| d | 31.5mm |
|---|---|
| D | 52mm |
| C | 15mm |
| C1 | 3mm |
| Dynamic load | 28.6 kN |
| Static load | 27 kN |
| Fatigue load limit Pu | 3.35 kN |
| Reference speed | 14000rpm |
| Limiting speed | 16000rpm |
| r1,2min | 1mm |
| Weight | 0.1kg |
