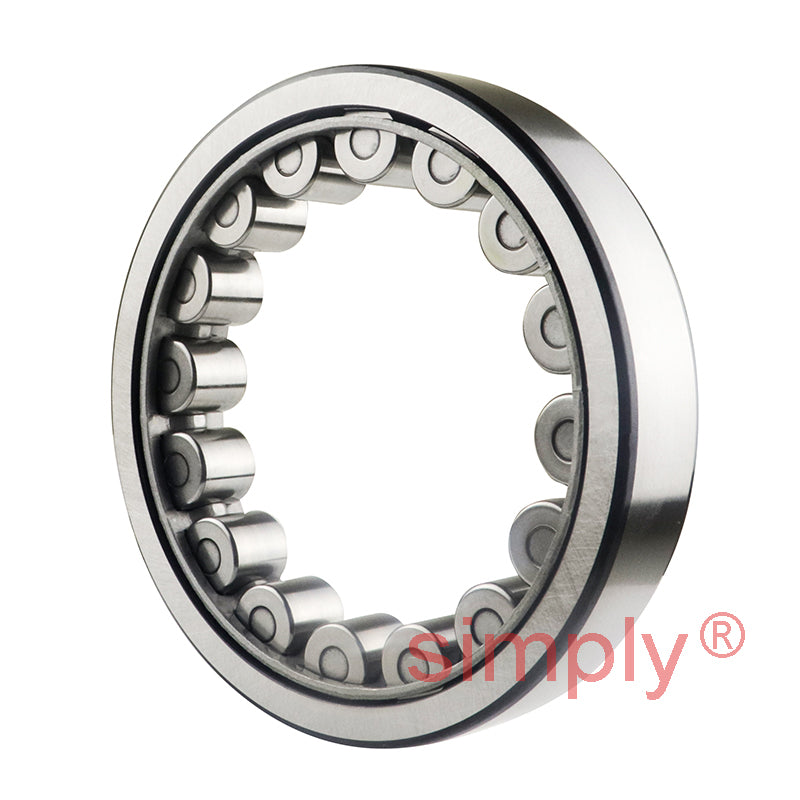

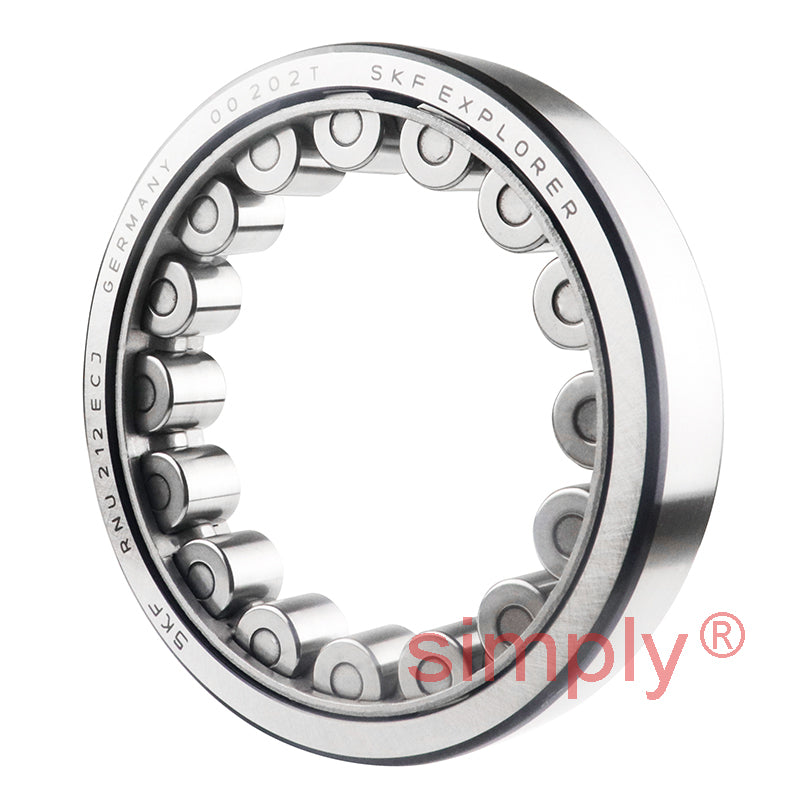

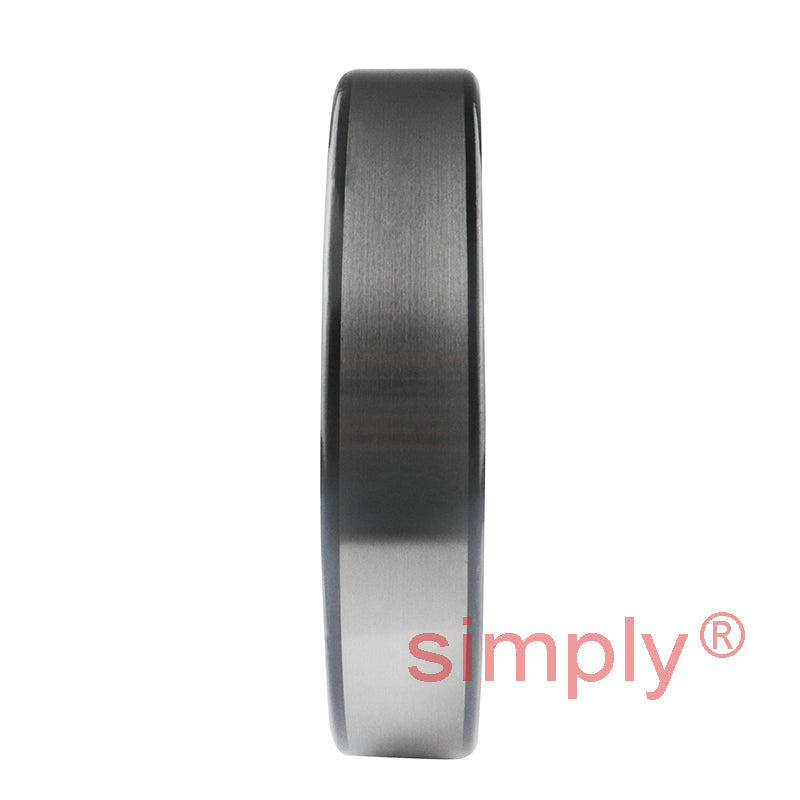

SKF RNU212ECJ Single Row Cylindrical Roller Bearing 72x110x22mm
SKF RNU212ECJ Single Row Cylindrical Roller Bearing 72x110x22mm
Regular price
$65.88
ex VAT
Regular price
Sale price
$65.88
ex VAT
In stock
Price Break
10+
$44.12
19+
$41.65
29+
$41.15
39+
$40.65
49+
$40.16
74+
$39.66
99+
$37.18
199+
$36.69
249+
$36.19
499+
$35.70
999+
$34.70
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 72mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
Technical
Technical
| d | 72mm |
|---|---|
| D | 110mm |
| C | 22mm |
| C1 | 4mm |
| Dynamic load | 108 kN |
| Static load | 102 kN |
| Fatigue load limit Pu | 13.4 kN |
| Reference speed | 6700rpm |
| Limiting speed | 7500rpm |
| r1,2min | 1.5mm |
| Weight | 0.83kg |
