SKU: RNU304-MB

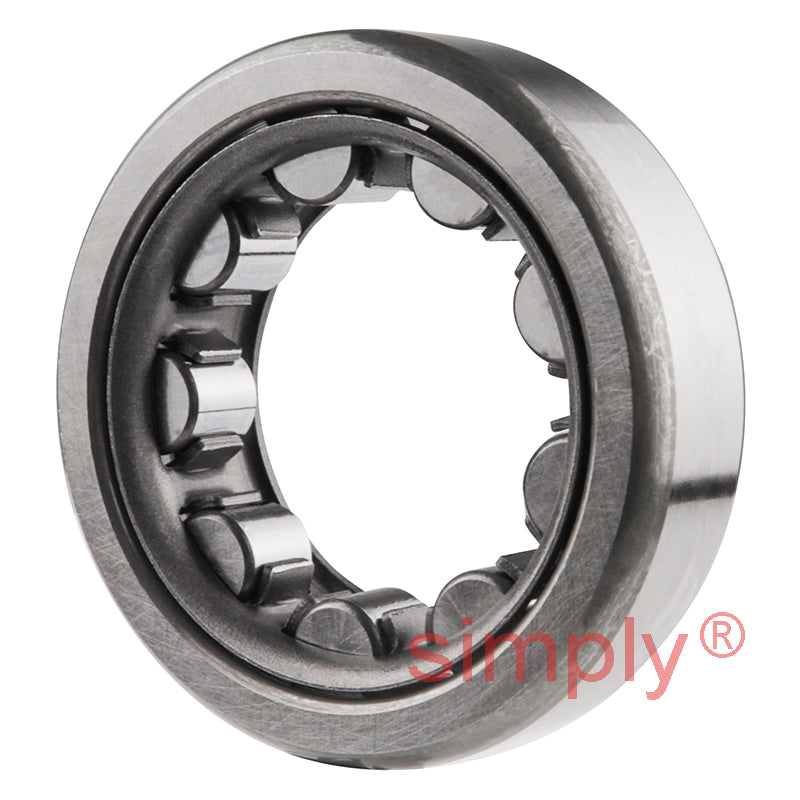

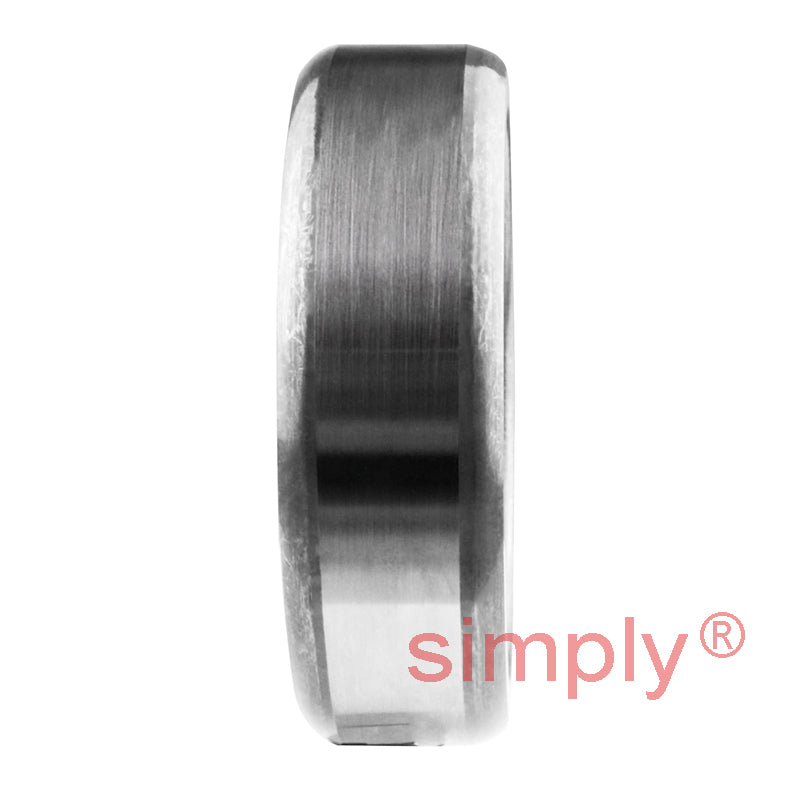

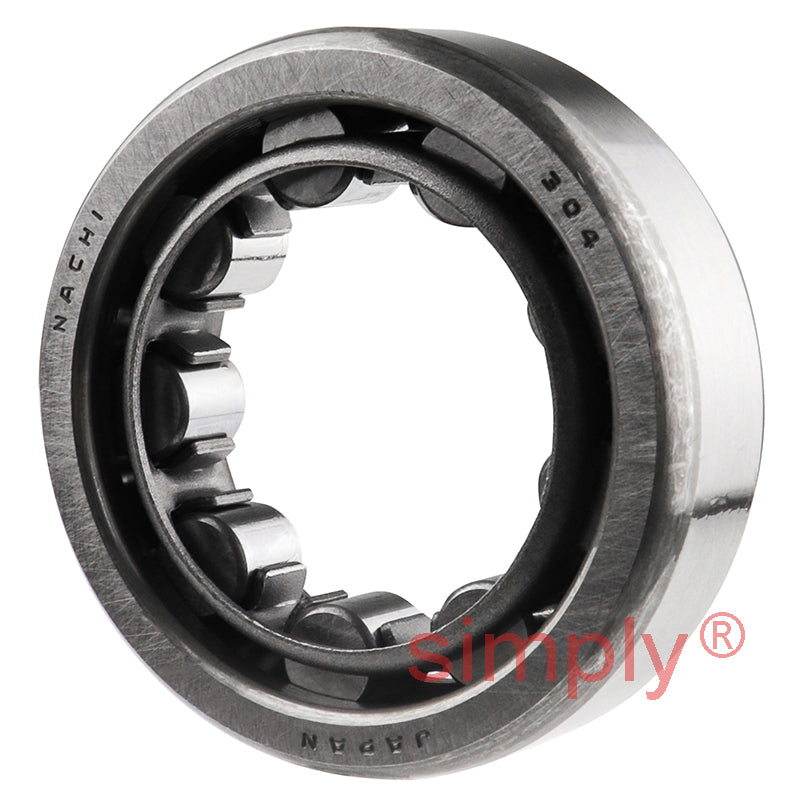

Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
- Regular price
- $68.63 ex VAT
- Sale price
- $68.63
- Regular price
-
In stock
Quantity Price Breaks
10
$61.08
19
$57.65
29
$56.96
39
$56.28
49
$55.59
74
$54.90
99
$51.47
199
$50.79
249
$50.10
499
$49.41
999
$48.04
SKU:
RNU304-MB
Major Brand RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
- Regular price
- $68.63 ex VAT
- Sale price
- $68.63
- Regular price
-
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
Technical
| d | = | 28.5mm |
| D | = | 52mm |
| C | = | 15mm |
| C1 | = | 3.5mm |
| Dynamic load | = | 20.5 kN |
| Static load | = | 10.4 kN |
| Fatigue load limit Pu | = | 2080 kN |
| Reference speed | = | 15000rpm |
| Limiting speed | = | 18000rpm |
| r1,2min | = | 1.1mm |
| Weight | = | 0.11kg |
