SKU: RNU304-SKF

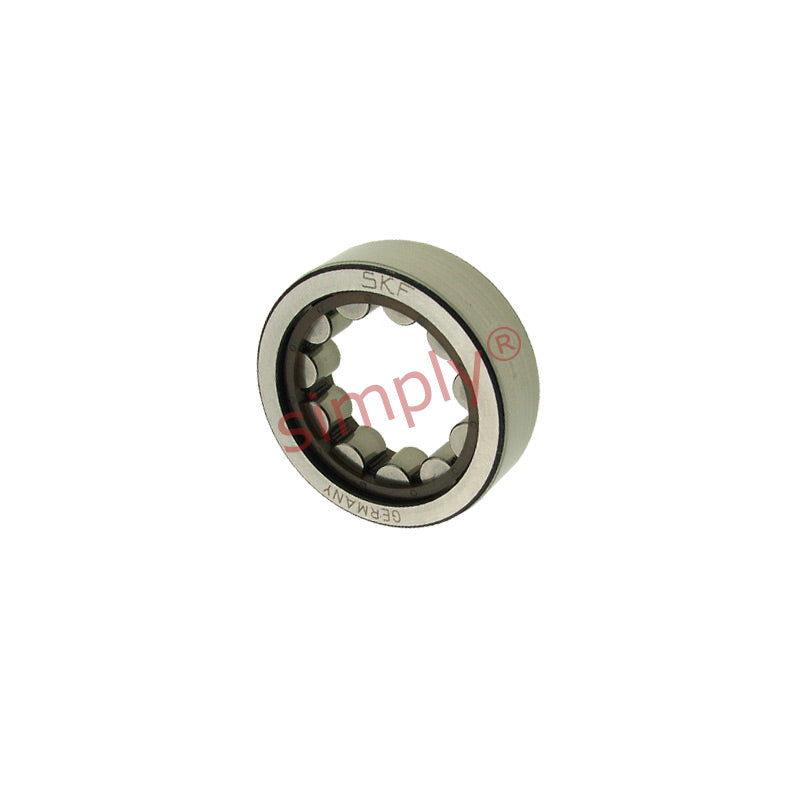

SKF RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
SKF RNU304 Single Row Cylindrical Roller Bearing 28.5x52x15mm
Regular price
$84.15
ex VAT
Regular price
Sale price
$84.15
ex VAT
In stock
Price Break
10+
$56.36
19+
$53.20
29+
$52.56
39+
$51.93
49+
$51.30
74+
$50.66
99+
$47.50
199+
$46.86
249+
$46.23
499+
$45.60
999+
$44.33
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 28.5mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
Technical
Technical
| d | 28.5mm |
|---|---|
| D | 52mm |
| C | 15mm |
| C1 | 3.5mm |
| Dynamic load | 20.5 kN |
| Static load | 10.4 kN |
| Fatigue load limit Pu | 2080 kN |
| Reference speed | 15000rpm |
| Limiting speed | 18000rpm |
| r1,2min | 1.1mm |
| Weight | 0.11kg |
