SKU: RNU305-SKF

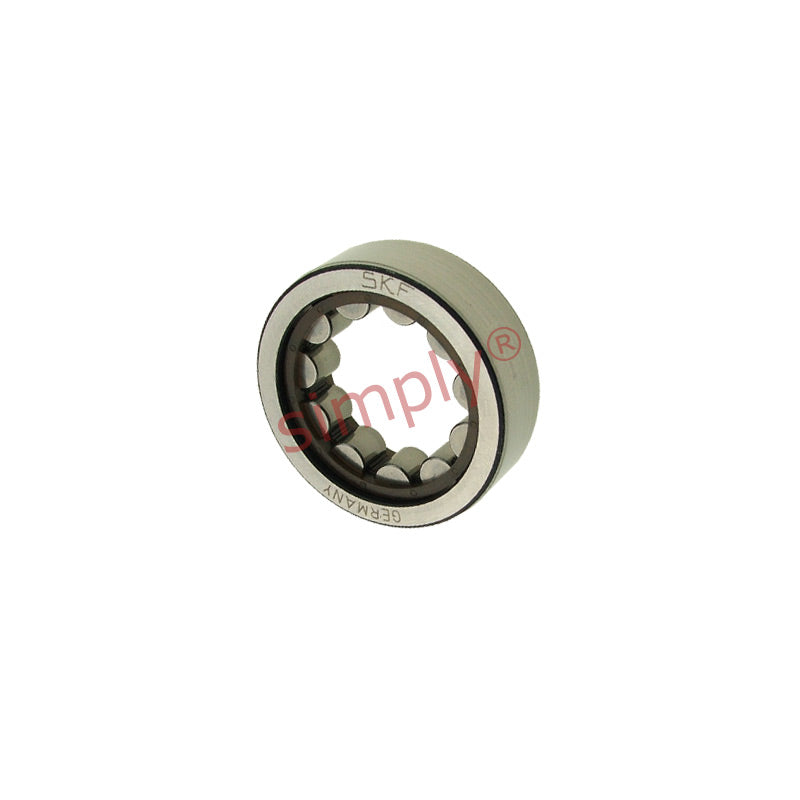

SKF RNU305 Single Row Cylindrical Roller Bearing 35x62x17mm
SKF RNU305 Single Row Cylindrical Roller Bearing 35x62x17mm
Regular price
$67.33
ex VAT
Regular price
Sale price
$67.33
ex VAT
In stock
Price Break
10+
$45.10
19+
$42.57
29+
$42.06
39+
$41.55
49+
$41.05
74+
$40.54
99+
$38.01
199+
$37.50
249+
$36.99
499+
$36.49
999+
$35.47
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 62mm
- Width:
- 17mm
Technical
Technical
| d | 35mm |
|---|---|
| D | 62mm |
| C | 17mm |
| C1 | 4mm |
| Dynamic load | 28.6 kN |
| Static load | 15 kN |
| Fatigue load limit Pu | 3.05 kN |
| Reference speed | 12000rpm |
| Limiting speed | 15000rpm |
| r1,2min | 1.1mm |
| Weight | 0.17kg |
