SKU: RNU308ECP-SKF

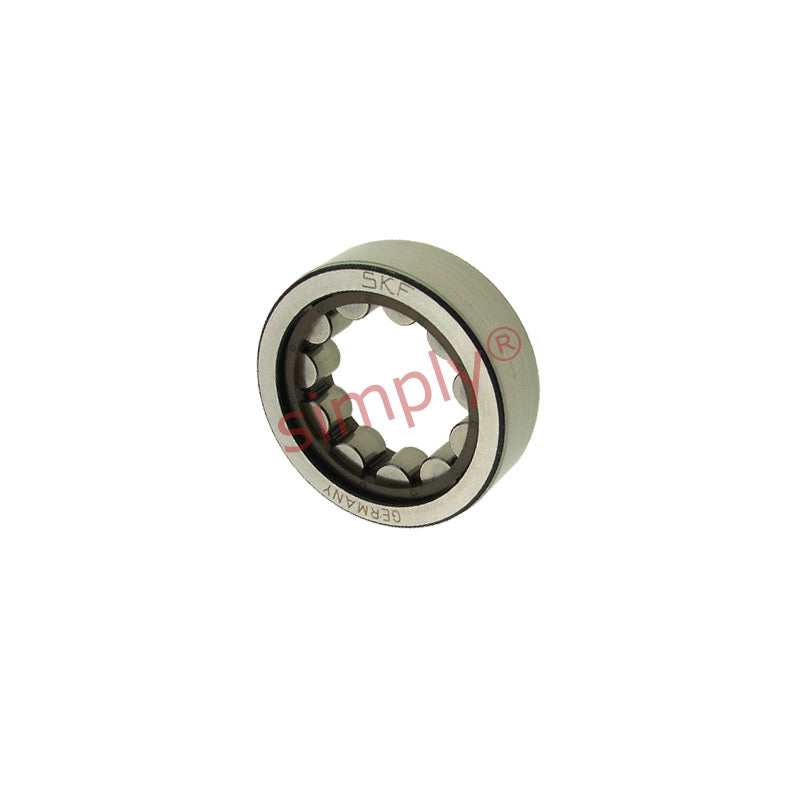

SKF RNU308ECP Single Row Cylindrical Roller Bearing 52x90x23mm
SKF RNU308ECP Single Row Cylindrical Roller Bearing 52x90x23mm
Regular price
$85.98
ex VAT
Regular price
Sale price
$85.98
ex VAT
In stock
Price Break
10+
$57.59
19+
$54.36
29+
$53.71
39+
$53.06
49+
$52.42
74+
$51.77
99+
$48.53
199+
$47.89
249+
$47.24
499+
$46.59
999+
$45.30
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 52mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
Technical
Technical
| d | 52mm |
|---|---|
| D | 90mm |
| C | 23mm |
| C1 | 4mm |
| Dynamic load | 93 kN |
| Static load | 78 kN |
| Fatigue load limit Pu | 10.2 kN |
| Reference speed | 8000rpm |
| Limiting speed | 9500rpm |
| r1,2min | 1.5mm |
| Weight | 0.57kg |
