SKU: RPB15-XL-INA

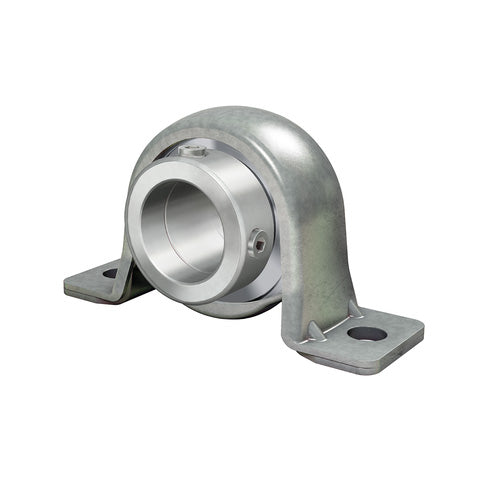

INA RPB15XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 15mm Bore

Name: INA RPB15XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 15mm Bore
Brand: INA
SKU: RPB15-XL-INA
Price: 43.83 USD
Availability: InStock

$43.83 ex VAT

Sale Sold out

In stock

Price Break

4+ $29.36

9+ $27.71

19+ $27.38

29+ $27.05

39+ $26.72

49+ $26.39

59+ $24.74

69+ $24.41

79+ $24.08

89+ $23.75

99+ $23.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which aborbs shock and vibrations. This reduces running noise.
Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, eccentric collar, reduced running noise.

Brand / Quality:: INA - High Quality
Inside Diameter:: 15mm
Style:: PPB
Bolt Hole Centres:: 76mm

Technical

d	15mm
L	98.4mm
H2	50.1mm
A	31.8mm
A1	22.3mm
B1	28.6mmd3 max
28.4mm	H
25.4mm	H1
3.3mm	J
76mm	N
9.5mm	S1
22.1mm	Mass
0.23 kg	Load carrying capacity of housing Cor G
900 N	Basic dynamic load rating Cr
10100 N	Basic static load rating Cor
4750 N	Designation of housing
GEH47-BT?	Designation of bearing
RAE15-XL-NPP-B?	Designation of rubber interliner
GRG.RABR40/47?	N/A
