SKU: RPB20-XL-INA

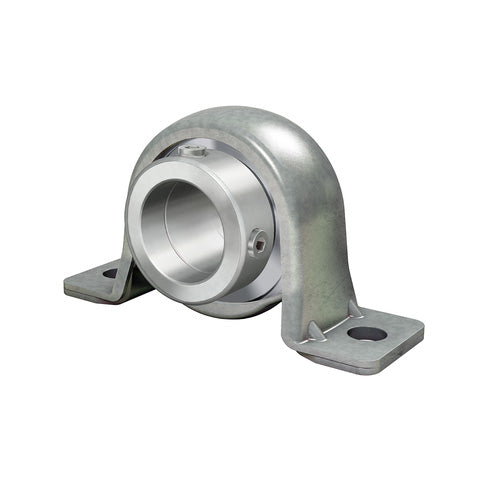

INA RPB20XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 20mm Bore

Name: INA RPB20XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 20mm Bore
Brand: INA
SKU: RPB20-XL-INA
Price: 57.57 USD
Availability: InStock

$57.57 ex VAT

Sale Sold out

In stock

Price Break

4+ $38.56

9+ $36.40

19+ $35.96

29+ $35.53

39+ $35.10

49+ $34.66

59+ $32.50

69+ $32.06

79+ $31.63

89+ $31.20

99+ $30.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which aborbs shock and vibrations. This reduces running noise.
Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, eccentric collar, reduced running noise.

Brand / Quality:: INA - High Quality
Inside Diameter:: 20mm
Style:: PPB
Bolt Hole Centres:: 86mm

Technical

d	20mm
L	108mm
H2	56.5mm
A	31.8mm
A1	23.5mm
B1	31mmd3 max
33mm	H
28.6mm	H1
4mm	J
86mm	N
11.5mm	S1
23.5mm	Mass
0.28 kg	Load carrying capacity of housing Cor G
1100 N	Basic dynamic load rating Cr
13600 N	Basic static load rating Cor
6600 N	Designation of housing
GEH52-BT?	Designation of bearing
RAE20-XL-NPP-B?	Designation of rubber interliner
GRG.RABR47/52-AH01?	N/A
