SKU: RPB25-XL-INA

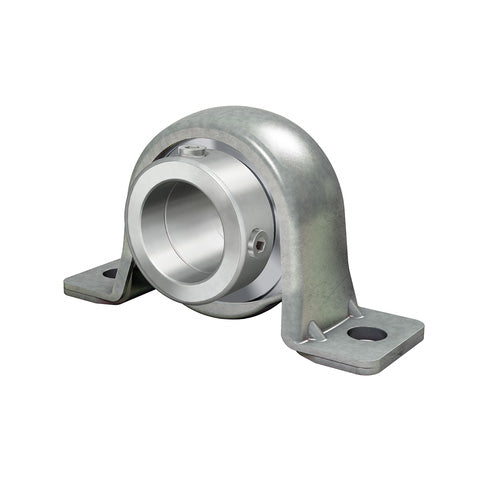

INA RPB25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 25mm Bore

Name: INA RPB25XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert and Rubber Interliner 25mm Bore
Brand: INA
SKU: RPB25-XL-INA
Price: 58.14 USD
Availability: InStock

$58.14 ex VAT

Sale Sold out

In stock

Price Break

4+ $38.95

9+ $36.76

19+ $36.32

29+ $35.88

39+ $35.45

49+ $35.01

59+ $32.82

69+ $32.38

79+ $31.94

89+ $31.51

99+ $30.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction. On the bearing outer ring, there is a rubber interliner which aborbs shock and vibrations. This reduces running noise.
Benefits: Suitable for a lightweight construction, housing is corrosion-resistant, eccentric collar, reduced running noise.

Brand / Quality:: INA - High Quality
Inside Diameter:: 25mm
Style:: PPB
Bolt Hole Centres:: 95mm

Technical

d	25mm
L	117.5mm
H2	66.1mm
A	38mm
A1	26.5mm
B1	31mmd3 max
37.5mm	H
33.3mm	H1
4mm	J
95mm	N
11.5mm	S1
23.5mm	Mass
0.38 kg	Load carrying capacity of housing Cor G
1400 N	Basic dynamic load rating Cr
14900 N	Basic static load rating Cor
7800 N	Designation of housing
GEH62-BT?	Designation of bearing
RAE25-XL-NPP-B?	Designation of rubber interliner
GRG.RABR52/62-AH01?	N/A
